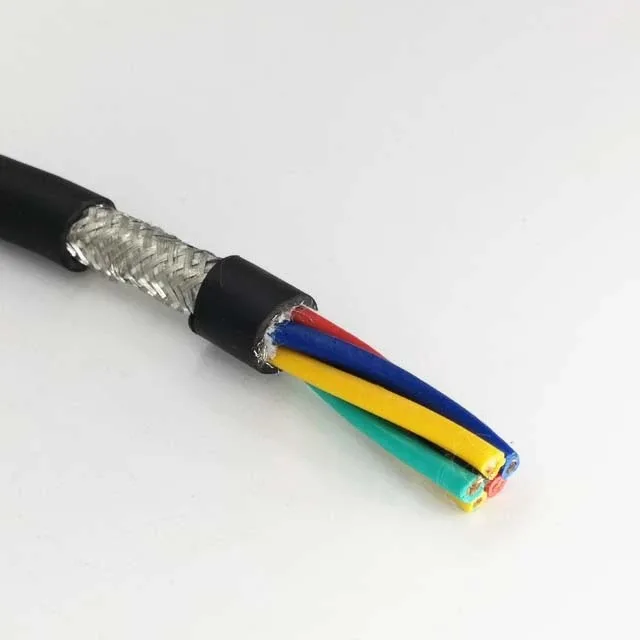

5 Core 2.0mm² Screened PVC Drag Chain Cable, 3,000,000 Flex Cycles

Name: 5 Core 2.0mm² Screened PVC Drag Chain Cable, 3,000,000 Flex Cycles
Brand: PAIDE
SKU: Custom

Drag Chain Cables · Industrial Automation

Custom

Five-core 2.0mm² drag chain cable with tinned copper braid screening and a PVC jacket, rated for more than 3 million flexing cycles at 7.5D.

Model

Custom

Specification

5 × 2.0mm² (14AWG)

Conductor

Stranded oxygen-free copper

Insulation

PVC

Shield

Tinned copper braid, overall shield, coverage ≤85%

Wrapping

Non-woven tape

Jacket

PVC, black

Outer diameter

12.6 mm

Bending radius

5D fixed, 7.5D moving

Flex life

over 3 million cycles

Temperature range

-15 °C to +70 °C fixed, -5 °C to +70 °C moving

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Drag chain cables are well suited to the machine tool industry, robotics and machinery production, and to any application requiring high flexibility. They are intended for freely moving use under medium mechanical stress.

Cable construction:

- 5 cores, 2.0mm² (14AWG)

Conductor: stranded oxygen-free copper

Insulation material: PVC

Insulation colours: red, yellow, blue, green, yellow-green

Shield: tinned copper braid (overall shield, coverage ≤85%)

Wrapping: non-woven tape

Jacket material: PVC

Outer jacket colour: black

Outer diameter: 12.6 mm

Min. bending radius: 5D fixed installation, 7.5D moving installation

Flex cycles: over 3,000,000
