Specialty cable engineering — Kunshan, China

Cables engineered for depth, motion and time.

Neutrally buoyant umbilicals, tethered aerial power lines, watertight optoelectric links and continuous-flex industrial cable — designed around the working condition, not a catalogue section.

Product index → How we build

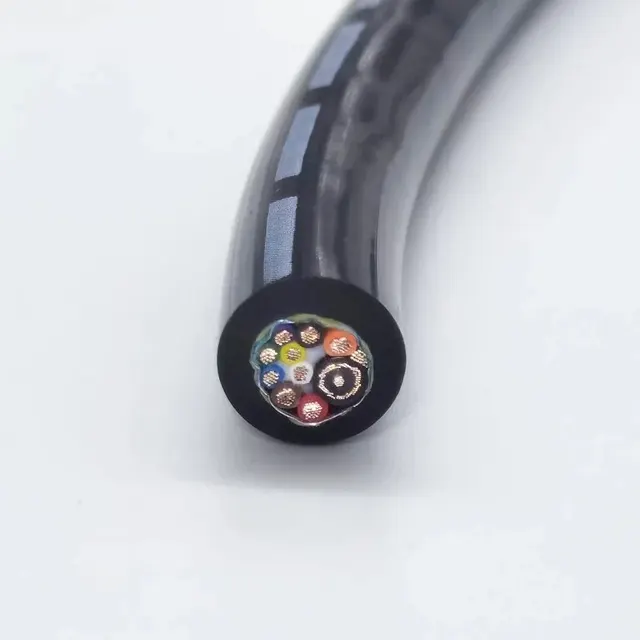

Cable cross-section: multicore construction with copper conductors
Construction CB-0114 families · 250+ builds
Neutral buoyancyROV umbilicalsTethered drone tethersWater-blocked coresDrag chain · 10M cyclesTorsion-rated robot cableFEP · +200 °CWet-mate connectorsFibre hybridBuilt to the working conditionNeutral buoyancyROV umbilicalsTethered drone tethersWater-blocked coresDrag chain · 10M cyclesTorsion-rated robot cableFEP · +200 °CWet-mate connectorsFibre hybridBuilt to the working condition

What we make

One engineering team, three environments.

PAIDE builds cable for places where a standard product stops being adequate: below the surface, in the air on a tether, and inside machines that never stop moving.

The same design logic runs through all of them. Work out what the cable has to survive — pressure, tension, cycles, temperature, chemistry — then choose conductor, insulation, screen, strength member and jacket together, because each one constrains the others. Founded in Kunshan, Jiangsu, and supplying overseas since the export business began.

CE · LVD 2014/35/EU EN 50525-2-11 100+ patents Custom from requirement

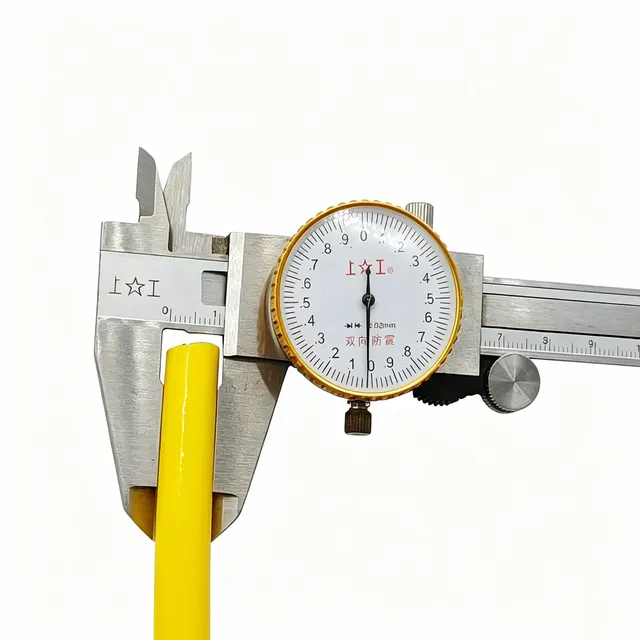

Dimensional inspection of a PAIDE cable
Dimensional inspectionOutside diameter check

01 — Product index

Fourteen families, one index.

Every construction below is a starting point. Sections, core counts, screening, jacket compound, length and termination are specified per project.

01 Underwater Power Cables Power, control and signal cores for ROV umbilicals, subsea equipment and underwater instruments. 78 ref 02 Zero-Buoyancy Cables Neutrally buoyant tethers that hold position in the water column instead of dragging on the seabed. 56 ref 03 Watertight Optoelectric Cables Optical and electrical units in one watertight jacket, for links that need bandwidth and power together. 25 ref 04 Tethered Drone Cables Lightweight power-and-fibre tethers for continuous-flight drones and tethered aerostats. 31 ref 05 Drag Chain Cables Continuous-flex control and power cables for cable carriers, with the stranding and jacket to match the cycle count. 12 ref 06 Robot Joint Cables Torsion-rated cables for robot arms, built to take twisting motion rather than just bending. 2 ref 07 Elevator Traveling Cables Flat and round traveling cables for lift cars, with coaxial and fibre options for video and data. 9 ref 08 Crane & Hoist Drum Cables Reeling and pendant cables for cranes, hoists and container handling equipment. 5 ref 09 Spiral & Spring Cables Coiled cords that extend and retract, for tools, medical equipment and handheld control units. 14 ref 10 Pipeline Inspection Robot Cables Small-diameter, abrasion-resistant cables for sewer and pipeline crawlers and cameras. 7 ref 11 Specialty & Instrumentation Cables High-temperature, low-temperature, inclinometer, geophysical and other application-specific constructions. 11 ref 12 Cable Pulling Grips & Lacing Stainless and galvanised mesh grips that transfer pulling load into the cable jacket, not the cores. 2 ref 13 Underwater Fiber Connectors Wet-mate optical connectors and assemblies for subsea data links. 1 ref 14 Underwater Power Connectors Pressure-rated wet-mate power connectors, bulkheads and dummy plugs for subsea equipment. 1 ref
1000+enterprises served
40+countries and regions
100+patents granted
14product families

02 — Capability

From requirement to tested assembly.

Design, cabling, extrusion, screening, overmoulding and test under one roof — which is what allows a construction to be changed for one project.

01

Construction design

Each cable starts from the working condition: depth, pressure, tensile load, bend radius, cycle count, temperature and the connector at each end. Conductors, insulation, screening, strength member and jacket are then selected together, because they constrain each other.

02

Conductor and cabling

Bundled and concentric stranding, lay length control and unit grouping. Power, signal and fibre units are kept in defined positions in the core so crosstalk, stripping and termination stay predictable.

03

Screening and strength members

Aluminium foil with drain wire, tinned copper braid at specified coverage, and aramid or HMPE strength members sized to the load case. The strength path is kept mechanically separate from the electrical cores.

04

Extrusion and jacketing

TPU, PUR, PE, PVC, FEP and silicone jackets, including foamed layers for buoyancy. Wall thickness and concentricity are controlled because they set both the water resistance and the finished diameter.

Full capability sheet →

03 — Series

Where the cable has to work.

03 families

Marine & Subsea

Cable systems that live in salt water: power, control, signal and fibre for vehicles, sensors and structures below the surface.

Underwater Power Cables78 →Zero-Buoyancy Cables56 →Watertight Optoelectric Cables25 →
01 family

Tethered Systems

Lightweight hybrid tethers for drones, aerostats and elevated platforms: power up, data down, over a single load-bearing line.

Tethered Drone Cables31 →
07 families

Industrial Automation

Continuous-flex cables for machines that move: drag chains, robot joints, hoists, elevators and inspection robots.

Drag Chain Cables12 →Robot Joint Cables2 →Elevator Traveling Cables9 →Crane & Hoist Drum Cables5 →Spiral & Spring Cables14 →Pipeline Inspection Robot Cables7 →Specialty & Instrumentation Cables11 →
03 families

Accessories & Connectors

The parts that decide whether a cable survives the installation: grips, lacing, wet-mate connectors and terminations.

Cable Pulling Grips & Lacing2 →Underwater Fiber Connectors1 →Underwater Power Connectors1 →

04 — Selected constructions

Recent references.

Model numbers are the ones customers specify. Each page carries the full construction, dimensions and options.

ROV Umbilical Cable 4x24AWG+2x2x26AWG+1x26AWG+2x1SMF+D-635KG - 11 mm OD, 635 kg TensileROV umbilical cable 4x24AWG+2x2x26AWG+1x26AWG+2x1SMF+D-635KG
Underwater Power Cables ROV Umbilical Cable 4x24AWG+2x2x26AWG+1x26AWG+2x1SMF+D-635KG - 11 mm OD, 635 kg Tensile Copper strandsView →

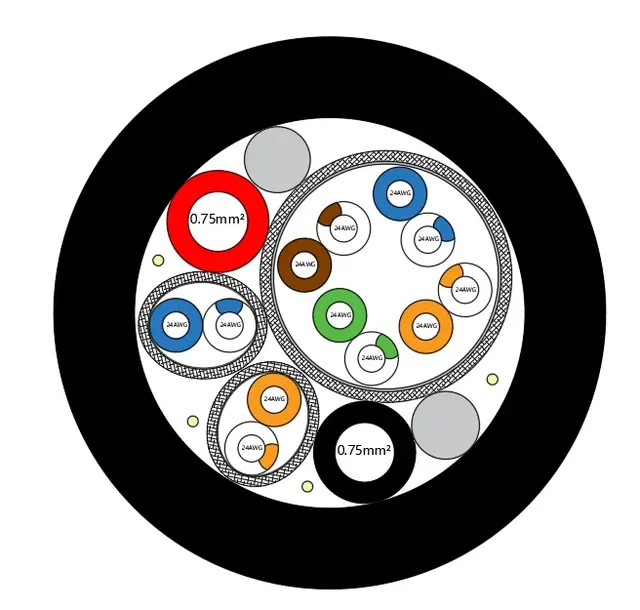

PDK81301 2×0.75 mm² + 4×2×24AWG + 2×2×24AWG 50 kg Composite Power and Signal Umbilical CablePDK81301
Underwater Power Cables PDK81301 2×0.75 mm² + 4×2×24AWG + 2×2×24AWG 50 kg Composite Power and Signal Umbilical Cable Bare copperView →

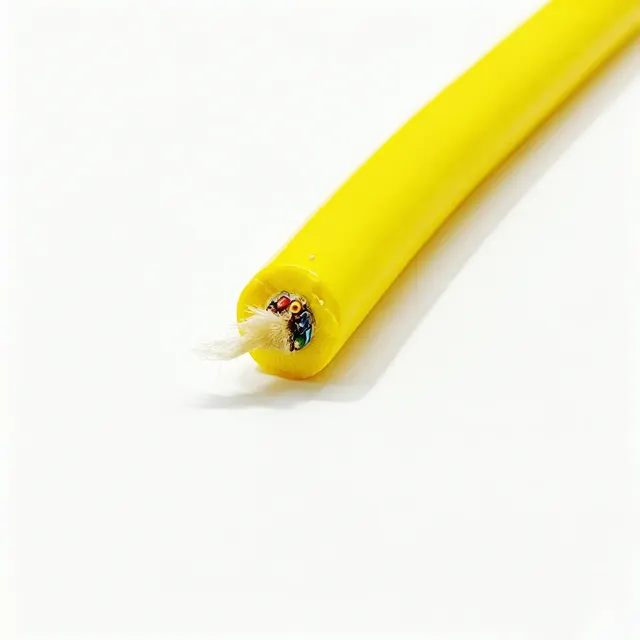

ROV Cable 4×24AWG+2×2×26AWG+1×26AWG+2×1SMF+D-635KGROV cable 4×24AWG+2×2×26AWG+1×26AWG+2×1SMF+D-635KG
Underwater Power Cables ROV Cable 4×24AWG+2×2×26AWG+1×26AWG+2×1SMF+D-635KG Copper strandsView →

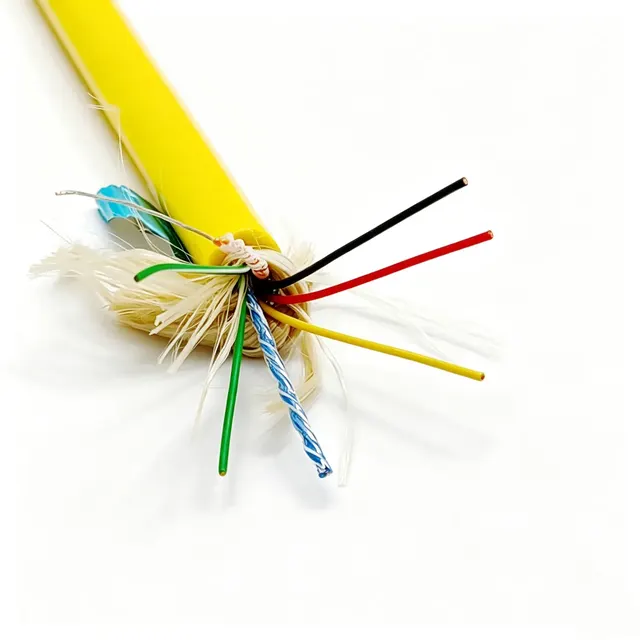

ROV Cable 4×24AWG + 2×2×26AWG + 1×26AWG + D-635KG, Power and Signal4×24AWG+2×2×26AWG+1×26AWG+D-635KG
Underwater Power Cables ROV Cable 4×24AWG + 2×2×26AWG + 1×26AWG + D-635KG, Power and Signal CopperView →

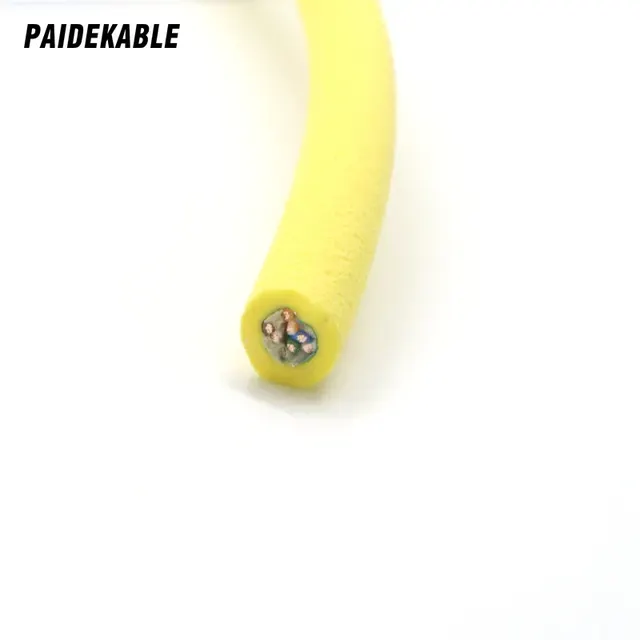

PDK81601-4×2×26AWG Neutrally Buoyant Ethernet Tether CablePDK81601-4×2×26AWG
Underwater Power Cables PDK81601-4×2×26AWG Neutrally Buoyant Ethernet Tether Cable Custom buildView →

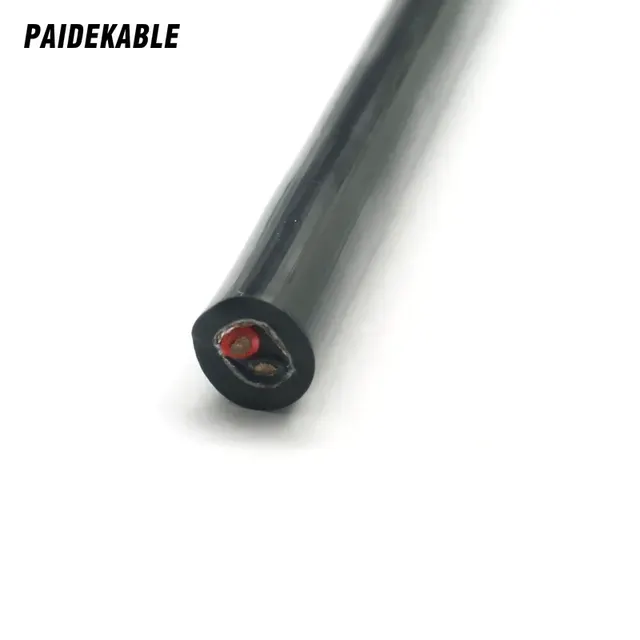

PDK81301-2x1.0 Underwater Power Cable, 2x1.0 mm2, Tinned Copper, PUR Sheath, 5 MPaPDK81301-2*1.0
Underwater Power Cables PDK81301-2x1.0 Underwater Power Cable, 2x1.0 mm2, Tinned Copper, PUR Sheath, 5 MPa Custom buildView →

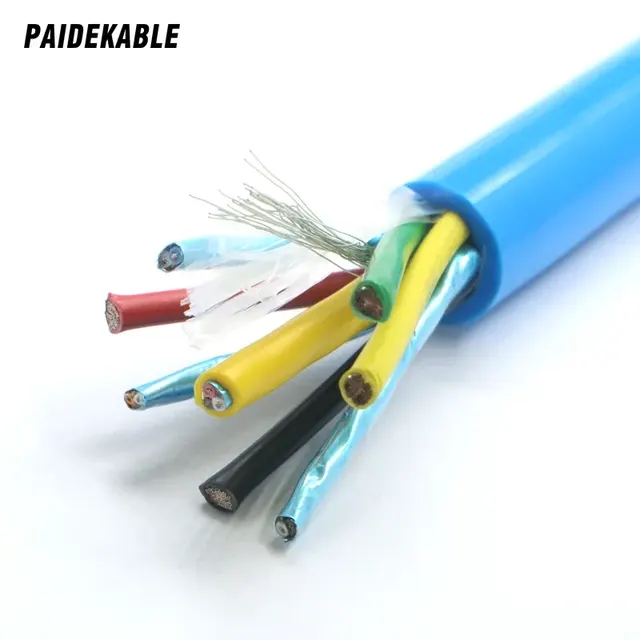

PDK81301 4x2.5 + 3x2x0.2 + 1x2x0.2 Multi-Core Subsea Power CablePDK81301-4*2.5+3*2*0.2+1*2*0.2
Underwater Power Cables PDK81301 4x2.5 + 3x2x0.2 + 1x2x0.2 Multi-Core Subsea Power Cable Custom buildView →

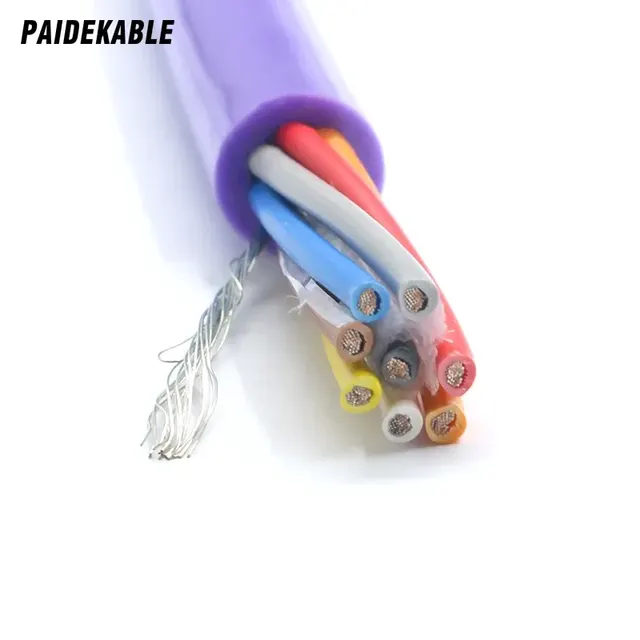

PDK81301-8×0.75 Underwater Power Cable, 8 Cores 0.75 mm², TPU Sheath, OD 9.9 mmPDK81301-8*0.75
Underwater Power Cables PDK81301-8×0.75 Underwater Power Cable, 8 Cores 0.75 mm², TPU Sheath, OD 9.9 mm Custom buildView →

All 254 constructions →

05 — Applications

Specified by the installation.

A cable is chosen by how it is deployed: launched over a sheave, dragged through a pipe, wound on a drum, or twisted in a joint.

01

ROV & Underwater Intervention

Work-class and observation ROVs run on one line that has to carry power, control, video and sensor data while being launched, towed and recovered. Buo…

umbilicalneutral buoyancyhybrid fibre
 02

Tethered UAV & Aerostat Systems

Continuous flight means ground-supplied power. Every metre of tether adds weight and voltage drop, so the construction is chosen around current, altit…

silver-plated copperFEP insulationfibre hybrid
 03

Offshore Wind & Oil and Gas

Salt water, UV, abrasion and continuous movement. Subsea power and control links for turbines, platforms and subsea production equipment are specified…

water-blockedTPU jacketHY / dynamic duty
 04

Ocean Observation & Sonar

Sensor arrays stay deployed for months and have to keep the noise floor low. Screened pairs, dedicated fibre units and stable dielectric materials pro…

screened pairslow noiseSMF
 05

Pipeline & Sewer Inspection

Crawlers work in wet, abrasive and chemically active pipe at diameters that leave little room for the cable. Small diameter, high-density jacket and a…

small diameterabrasion resistantcoax + power
 06

Elevators & Hoisting

Traveling cables and drum cables operate in one plane, millions of times, inside a shaft or on a drum. Flat construction, flame behaviour and cold fle…

flat constructionflame retardantdrum reeled

06 — Questions we get asked

Technical, not commercial.

How do I choose between a neutrally buoyant and a standard underwater cable?
It depends on where the cable has to sit in the water column. A neutrally buoyant construction is used when the cable must follow the vehicle or the structure without loading it — ROV tethers, towed arrays, dive support. Where the cable is fixed, armoured or laid on the seabed, a standard water-blocked power construction is simpler and carries more copper per millimetre. Density is a design output, so tell us the working depth and the acceptable in-water weight and the construction follows from that.
What determines the tensile rating of an underwater cable?
The strength member, not the conductor. Aramid or HMPE fibres are sized to the specified working and breaking load and terminated at both ends, so the electrical cores and any fibre unit carry no tension. The jacket and the connector strain relief only have to transfer load into the strength member. If a customer gives a required breaking force, we size the member to it with a margin for terminations.
Can power, signal and fibre share one cable?
Yes, and it is usually the reason a hybrid is specified: one cable means one connector set, one penetration and one handling operation. Power cores, twisted signal pairs and single-mode or multi-mode fibre units are laid in separate positions in the core, with individual screening where the signal requires it.
What is the difference between a drag-chain cable and a robot-joint cable?
The motion. A drag-chain cable bends repeatedly in a defined radius in one plane, so fine-wire stranding and a low-friction jacket are the priority. A robot joint twists the cable in both directions, so the lay direction, strand construction and jacket compound are chosen for torsion. Using one in the other application shortens life dramatically.

All questions →

Talk to engineering

Send the working condition, not a part number.

Depth, load, bend radius, cycle count, temperature, connector type at each end. With those five inputs we can propose a construction sheet within two working days.
