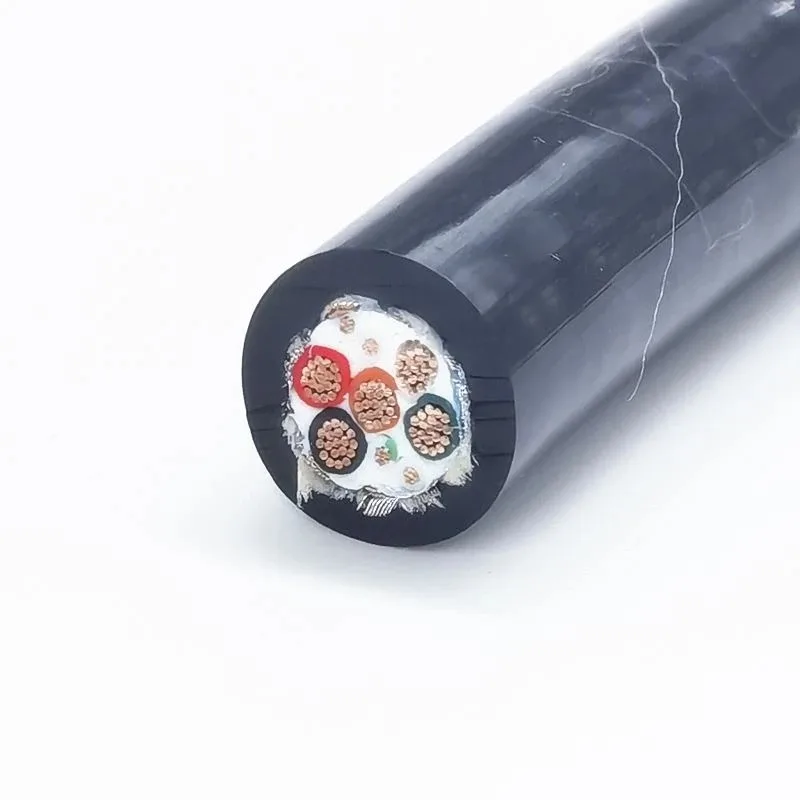

Gel-Filled Underwater Cable 2×2×22AWG + 5×18AWG PUR

Name: Gel-Filled Underwater Cable 2×2×22AWG + 5×18AWG PUR
Brand: PAIDE
SKU: On request

Underwater Power Cables · Marine & Subsea

On request

Gel-filled underwater umbilical with 2 twisted pairs 22AWG and 5 cores 18AWG, tinned copper and foil shield, 105℃ PUR jacket for long immersion.

Model

On request

Construction

2×2×22AWG + 5×18AWG PUR

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications

Offshore oil and gas

Renewable energy subsea systems

Offshore equipment systems

ROV and AUV systems

Underwater cameras

Diving equipment systems

Cable construction:

- 2 pairs 22AWG (0.34mm²)

- 5 cores 18AWG (0.82mm²)

Insulation: polyethylene

Filling: gel-filled

Shield: tinned copper braid, aluminium foil

Outer jacket: PUR

Jacket color: black

Temperature range: -40℃~105℃

Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.

This cable is customised to customer requirements.

The cable is gel-filled: the gel is applied over the braid shield or extruded on top of the foil shield. Because it is a gel, it flows and fills any gap or opening that appears. This makes gel filling effective long-term protection for waterproof and underwater cables.

Underwater umbilical cables are a typical product line for us. We can customise different sizes and constructions to each customer's requirements.
