Underwater Signal Umbilical Cable 4×0.5mm²

Name: Underwater Signal Umbilical Cable 4×0.5mm²
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Four-core 0.5 mm² (20AWG) subsea umbilical for power, control and signal duty with VDE0295 CLASS6 copper, PE insulation and double shielding.

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Applications:

Power supply, control and signal transmission for subsea equipment

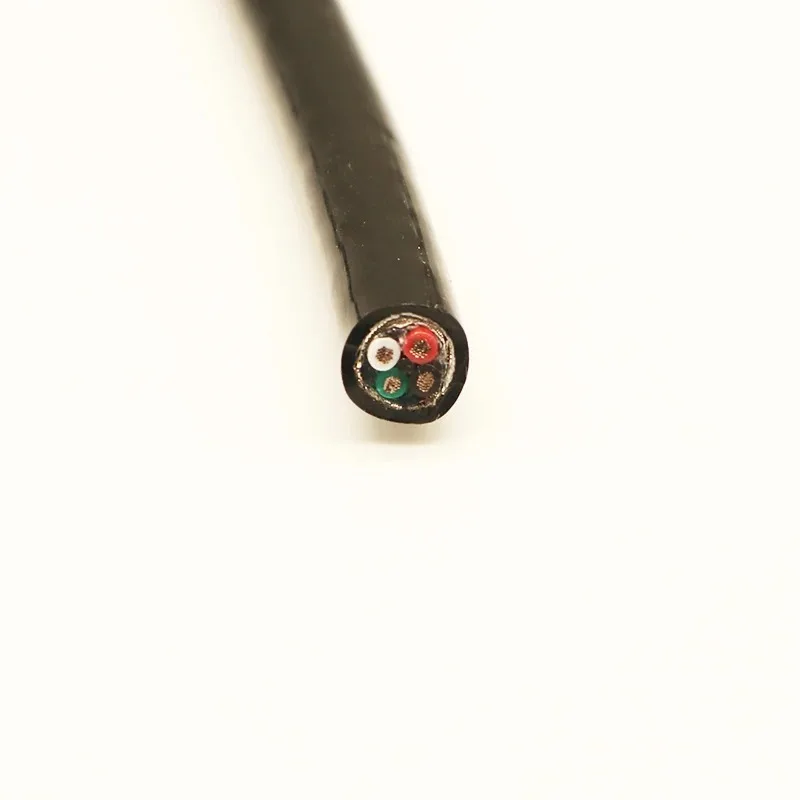

Product construction:

- 4 cores 0.5 mm²

(20AWG)

Conductor: finely stranded oxygen-free copper, to VDE0295 CLASS6

Insulation: polyethylene

Shield: aluminum foil and tinned copper braid (coverage 85% and above)

Wrapping: non-woven tape

Outer sheath: PUR

Color: black

The cable consists of four 0.5 mm² cores with double shielding. It is highly flexible and resistant to subsea pressure, seawater corrosion, low underwater temperature, oil and UV, as well as abrasion resistant and flame retardant, with a long service life; it suits fast installation on subsea instruments and equipment.
