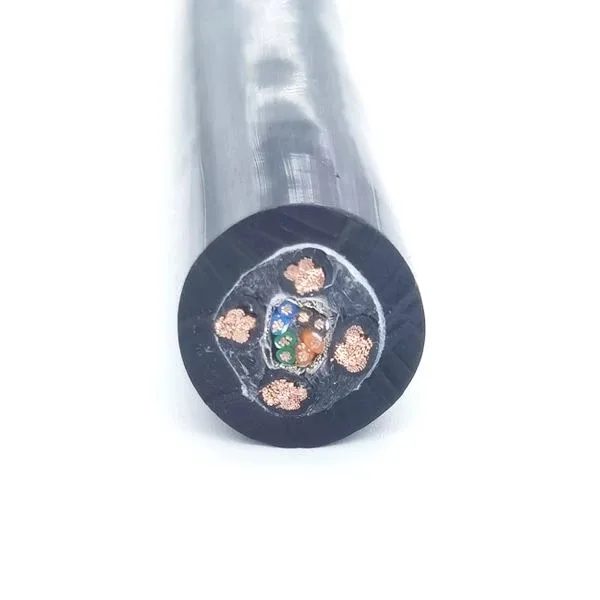

PUR Jacket Waterproof Cable 4×2×26AWG + 4×14AWG for Underwater Power and Signal

Name: PUR Jacket Waterproof Cable 4×2×26AWG + 4×14AWG for Underwater Power and Signal
Brand: PAIDE
SKU: Custom

Underwater Power Cables · Marine & Subsea

Custom

Watertight PUR-jacketed cable with four 26AWG twisted pairs and four 14AWG cores, carrying power and signal to subsea equipment in sea or fresh water.

Model

Custom

Specification

4 × 2 × 26AWG + 4 × 14AWG

Conductor

Stranded oxygen-free copper, VDE 0295 Class 6

Insulation

Polyethylene

Shield

Aluminium foil + tinned copper braid, coverage above 85%

Wrapping

Non-woven tape

Jacket

PUR

Jacket colour

Black

Temperature range

-30 °C to +90 °C

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application:

Power supply and communication for underwater equipment.

Construction:

- 4 twisted pairs, 26AWG

- 4 cores, 14AWG

Conductor: stranded oxygen-free copper, to VDE 0295 Class 6

Insulation: polyethylene

Shield: aluminium foil plus tinned copper wire braid, coverage above 85%

Wrapping: non-woven tape

Outer jacket: PUR

Colour: black

Temperature range: -30 °C to +90 °C

PUR polyurethane cable combines high mechanical strength with abrasion resistance and resistance to acid and alkali attack. It serves both as a power connection for underwater equipment and as a signal carrier. The cable can be dragged through sea water, waste water and fresh water during long-term immersion.
