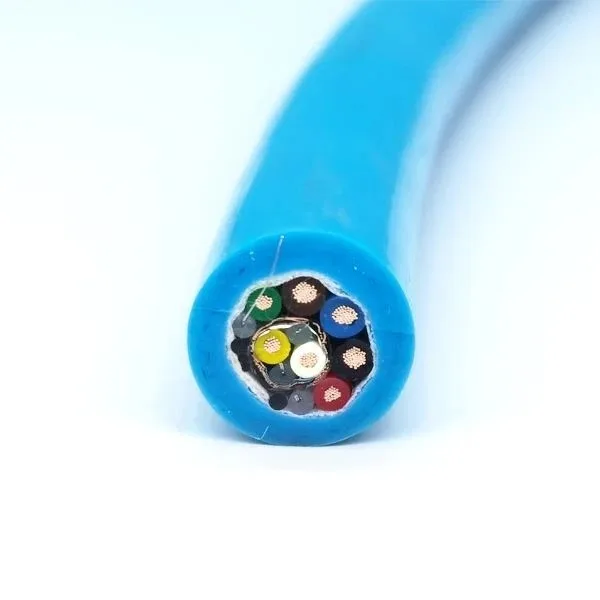

RS485 and Control Underwater Cable, 1×2×24AWG + 5×20AWG, PUR

Name: RS485 and Control Underwater Cable, 1×2×24AWG + 5×20AWG, PUR
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Underwater cable with one 24AWG RS485 pair and five 20AWG control cores, PE insulation, foil plus tinned copper braid shield and blue PUR sheath.

Request pricing → Email engineering

Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

RS485 and underwater control cable

Application:

Power connection and communication for underwater equipment.

Construction:

- 1 twisted pair 24AWG (RS485)

- 5 cores 20AWG

Conductor: finely stranded oxygen-free copper, to VDE 0295 Class 6 (tinned copper available)

Insulation: polyethylene

Shield: aluminium foil plus tinned copper braid, coverage 85% minimum

Wrapping: non-woven tape

Outer sheath: PUR

Sheath colour: blue

Temperature range: -30℃~90℃

Features: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant

The cable contains one RS485 twisted pair for signal transmission and five control cores. The RS485 pair uses a double shield of aluminium foil and tinned copper braid, which protects the signal from external interference. The cable offers high strength, tensile and abrasion resistance and resistance to acid and alkali corrosion. The underwater communication cable can be dragged in seawater, sewage and fresh water for long periods.
