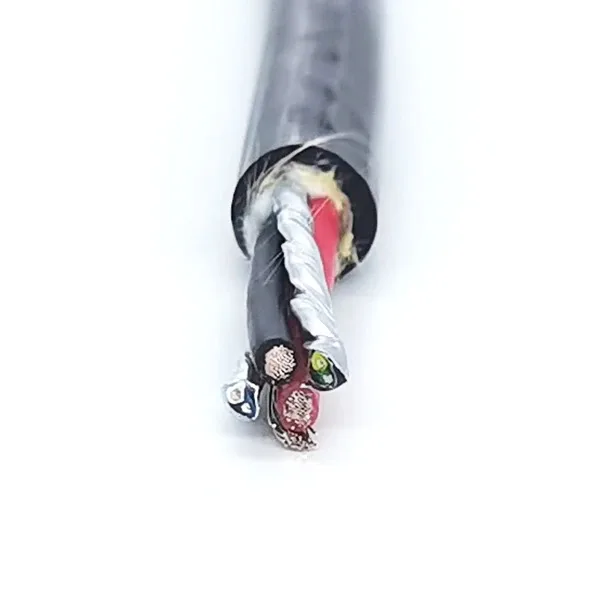

Underwater Cable 2 Power + 2 RS485 2×18AWG + 2×2×24AWG

Name: Underwater Cable 2 Power + 2 RS485 2×18AWG + 2×2×24AWG
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Gel-filled underwater hybrid cable with 2 × 18AWG power cores and 2 × 24AWG RS485 pairs, foil and drain-wire shielding, PUR sheath, -30 °C to +105 °C.

Request pricing → Email engineering

Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Applications:

- Offshore oil and gas

- Renewable energy subsea systems

- Defence equipment systems

- Offshore equipment systems

- ROV and AUV systems

- Underwater cameras

- Video and lighting systems

- Seabed seismic systems

- Diving equipment systems

Construction:

- 2 × 18AWG cores

- 2 pairs × 24AWG (RS485)

- Drain wire + aluminium foil

Conductor: bare copper strands

Shielding: drain wire and aluminium foil

Insulation: polyethylene

Outer sheath: PUR

Colour: black

Temperature rating: -30 °C to +105 °C

Polyurethane cables are referred to as PUR cables; they are halogen-free and flame retardant, with higher mechanical and chemical resistance, which makes them suitable for harsh environments.

Our underwater series uses polyurethane as its sheath material, combining strong performance with the flexibility needed for underwater applications involving frequent or continuous bending.

This cable is gel-filled, with the gel applied over the braided shield or extruded on top of the foil shield. Because it is a gel, it flows and fills any gap or opening that appears, which makes it an effective long-term water-blocking solution for waterproof and underwater cables.

If no standard cable meets your application requirements, we can also build a cable to your full specification.
