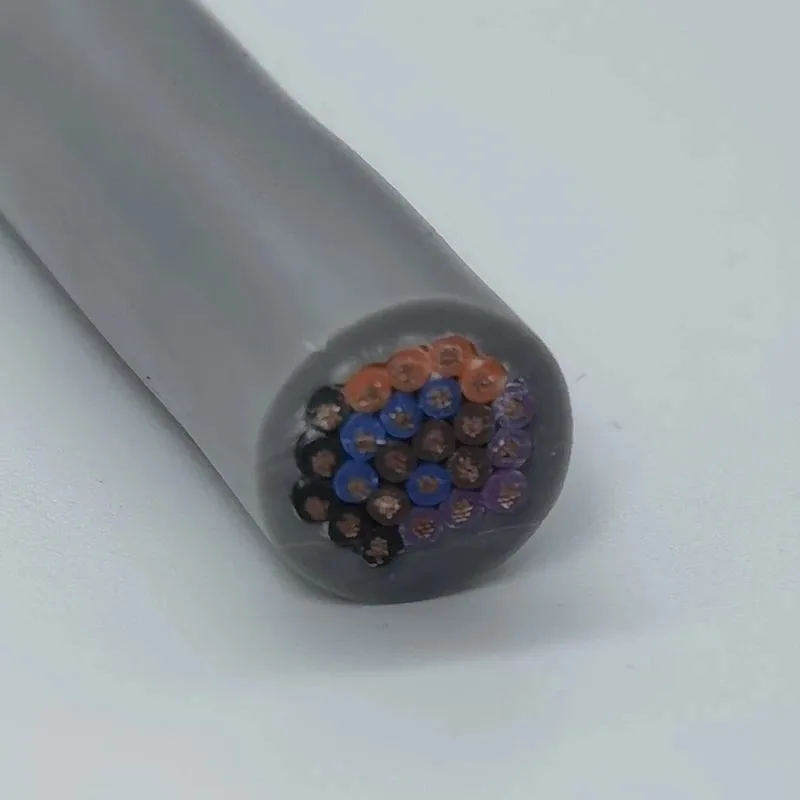

RVV Flexible Cable 24x0.2 mm2 (24AWG), Tinned Copper, SR-PVC, Grey, 8.4 mm

Name: RVV Flexible Cable 24x0.2 mm2 (24AWG), Tinned Copper, SR-PVC, Grey, 8.4 mm
Brand: PAIDE

Drag Chain Cables · Industrial Automation

Flexible RVV cable, 24 cores of 0.2 mm2 (24AWG) tinned copper, semi-rigid PVC insulation, grey PVC sheath, 8.4 mm OD, fixed and moving installation.

Request pricing → Email engineering

Custom manufacturing is available for each project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

The RVV cable features high performance and a water-resistant design, and is easy to identify and install. It is widely used in automotive, solar, motorhome and inverter applications.

Cable construction:

- 24 cores 0.2 mm2 (24AWG)

Conductor: tinned copper wire

Insulation material: semi-rigid PVC (SR-PVC)

Insulation colours: brown, blue, black, purple, orange, pink, grey, white (1-3 colour divisions)

Sheath material: PVC

Jacket colour: grey

Outer diameter: 8.4 mm

Bending radius: fixed installation 6D, moving installation 15D

Temperature range: fixed installation -15 °C to +80 °C, moving installation -5 °C to +80 °C
