Crane and Elevator Cable Custom 2-60 Cores 600/1000V
Elevator Traveling Cables · Industrial Automation
On request
Custom crane and elevator connection and control cable with 2-60 cores, PVC insulation, TPU/NBR inner and PUR outer jacket, 600/1000V, 7.5D bending.
Product introduction
Application:
Used as a connection and control cable for elevators or cranes, and for various electrical installations in dry or damp environments.
Design requirements:
High abrasion resistance: the jacket must withstand long-term rubbing against ore without damage.
High tensile strength: in mining, cables run over long lengths with high ground friction, so the cable needs high tensile strength to prevent core breakage.
Torsion resistance: cables are dragged long distances in underground roadways and frequently turn corners, which inevitably twists them; high torsion resistance prevents the jacket from splitting.
Water and corrosion resistance: underground mining can involve water or corrosive liquids, so the cable needs adequate water and corrosion resistance.

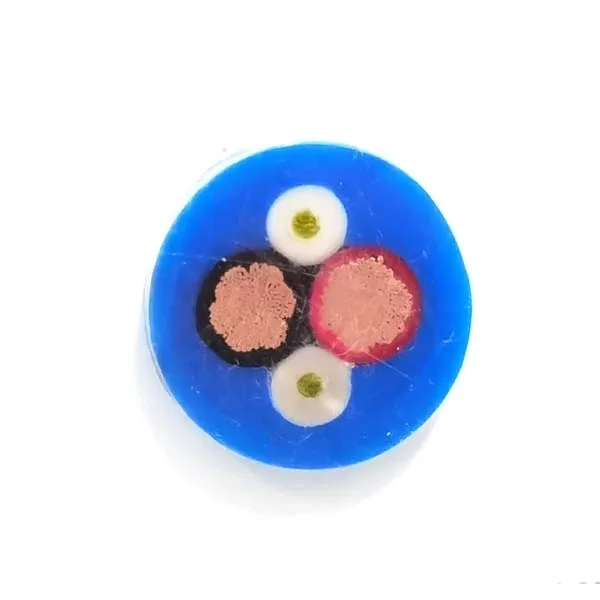

Cable construction:
Conductor: stranded oxygen-free copper, flexible and corrosion resistant.
Insulation: polyvinyl chloride
Core count: 2-60 cores. Colour or code identification, yellow-green earth core.
Strength member: purpose-made high-grade aviation steel wire, tensile fibre.
Inner jacket: TPU/NBR
Outer jacket: PUR (custom colours)
Temperature range: fixed installation -40℃~90℃, mobile installation -30℃~90℃
Minimum bending radius: 7.5D
Voltage: 600/1000V
