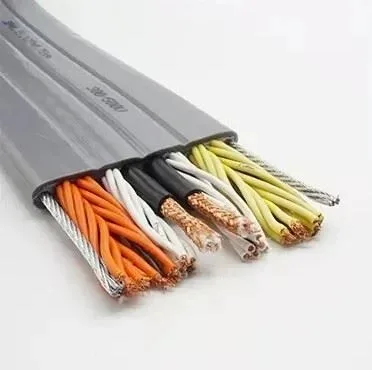

Custom Flat Elevator Traveling Cable, 1-60 Cores, Coax and Fibre, PVC, 450/750V
Elevator Traveling Cables · Industrial Automation
Flat elevator traveling cable built to order: 1-60 cores, coax and 1-12 fibre options, steel wire or Kevlar strength members, PVC sheath, 450/750V.
Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product introduction
Application:
Elevator systems
Cable construction:
Core count: 1-60 cores
Conductor: oxygen-free copper stranded wire
Coaxial: 75-2 / 75-3 / 75-5 / RG59 etc.
Fibre: 1-12 cores, single-mode, multimode etc.
Strength member: steel wire (both sides or one side), Kevlar etc.
Outer sheath: PVC
Colour: grey, black, orange etc.
Rated voltage: 450/750V
Test voltage: 3000V
Minimum bending radius: 10 × cable thickness
Temperature range: -15℃~70℃
Features: heat radiation resistant, cold resistant, acid and alkali resistant.
