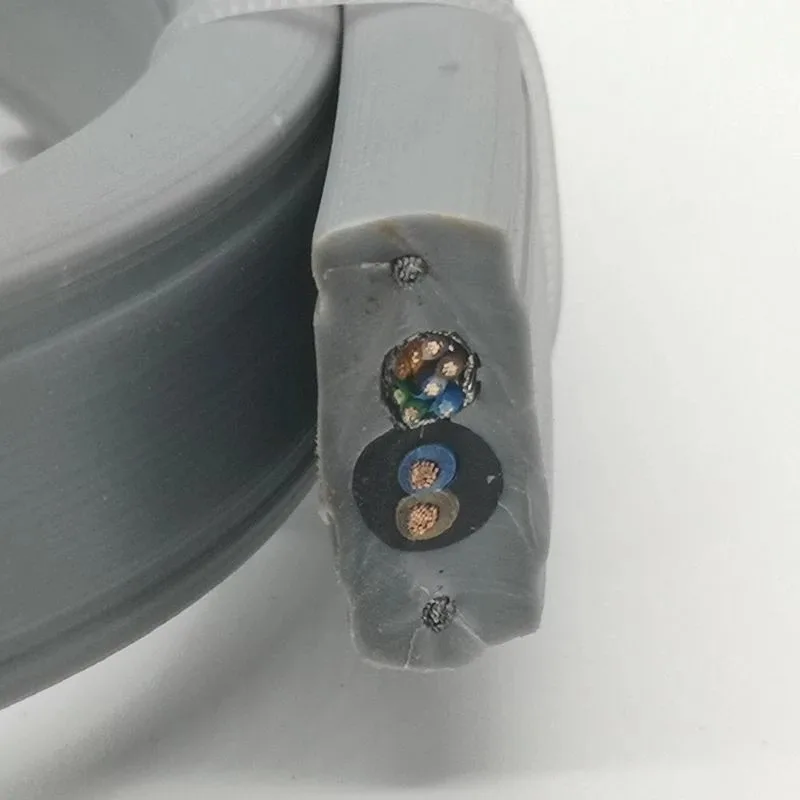

Elevator Traveling Cable 2×1.0 mm² + 4×2×24AWG, 450/750 V
Elevator Traveling Cables · Industrial Automation
Elevator traveling cable with 2 × 1.0 mm² (17AWG) cores and four 24AWG twisted pairs, foil and braid shield, steel wire tensile element, PVC sheath.
Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product overview
Applications:
Elevator network and power connections
Construction:
- 2 × 1.0 mm² (17AWG)
- 4 twisted pairs 24AWG
Conductor: finely stranded oxygen-free copper to VDE0295 CLASS 6
Insulation: PVC
Shielding: aluminium foil and bare copper braid (coverage above 85%)
Tensile element: steel wire
Outer sheath: PVC
Colour: grey or other colours (optional)
Rated voltage: 450/750 V
Test voltage: 3000 V
Minimum bending radius: 10 × cable thickness
