Name: PDK41300-2x1.2 Tethered Drone Cable - 3.0 mm OD, under 2.0 kg/100 m, -55 to +150 C
Brand: PAIDE

Tethered Drone Cables · Tethered Systems

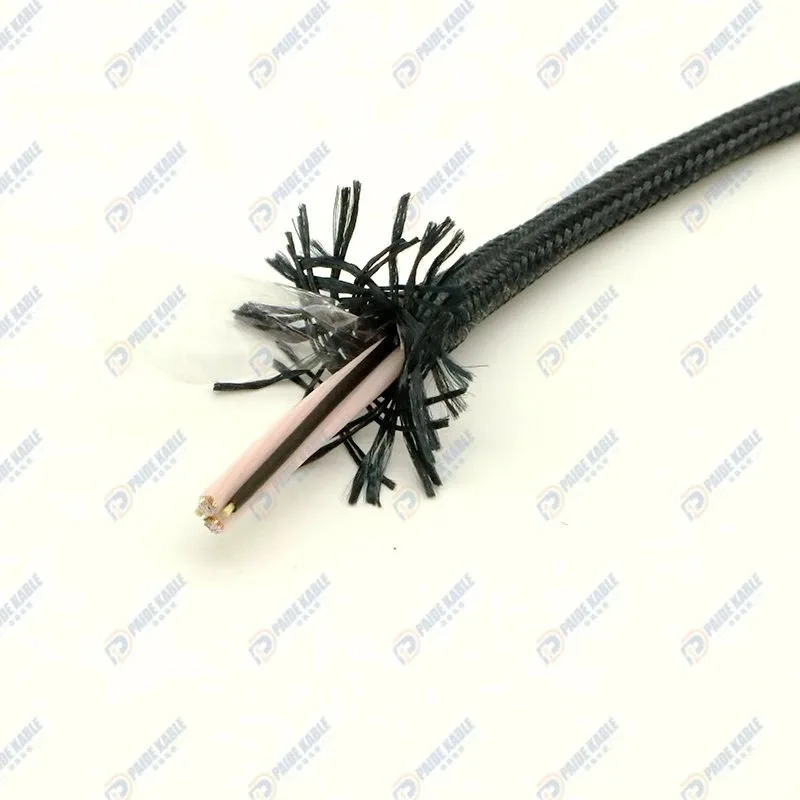

Two-core 1.2 mm2 tethered drone power cable with FEP/PTFE insulation, silver-plated copper conductors, 3.0 mm OD and under 2.0 kg per 100 m.

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Fly higher, see further and do more with a durable, lightweight hybrid cable solution.

Model: PDK41300-2x1.2

Cable construction:

- 2 cores x 1.2 mm²

Insulation material: FEP/PTFE

Conductor: silver-plated copper / light copper alloy

Sheath: high-strength aerospace fiber

Outer sheath color: black

Temperature range: -55 to +150 C

Outer diameter: 3.0 mm

Weight: less than 2.0 kg/100 m
