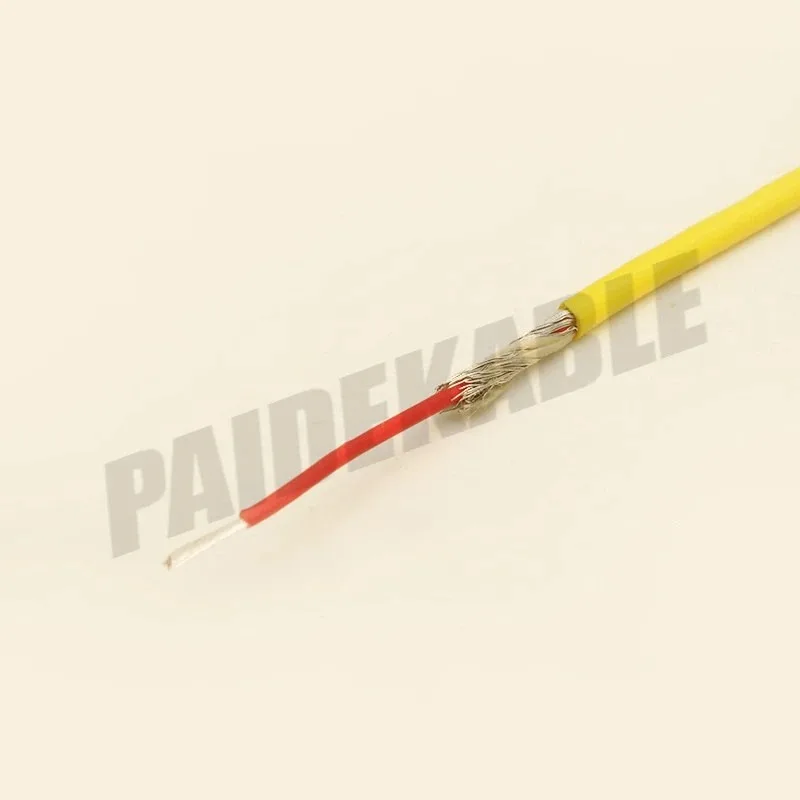

PDK41303-0.35 Coaxial Tethered Drone Cable, 750 V DC

Product overview

PAIDEKABLE supplies durable, lightweight hybrid cable solutions for tethered drones, allowing the aircraft to fly higher, see further and do more than before.

This tethered drone cable is of coaxial design. It has two conductors, the inner conductor and the outer shield, and can supply 3–5 A continuously at 750 V DC.

Model: PDK41303-0.35

Cable construction:

- 0.35 mm² coaxial

Insulation: high-grade composite material

Conductor: silver-plated copper

Shield: tinned copper plus aramid fibre braid (equivalent to 0.35 mm²)

Sheath: high-grade composite material

Outer sheath colour: yellow (other colours available)

Temperature range: -55 °C to +150 °C

Outer diameter: 2.5 ± 0.15 mm

Weight: less than 1.0 kg per 100 m

Operating current: 3–5 A

Operating voltage: 750–1000 V DC

Features: good environmental tolerance, with resistance to salt spray, heat and humidity, temperature, low pressure, UV and rain.

If this does not meet your requirements, contact us and we will provide a new design at no charge.

We will supply cost-effective tethered drone cables.
