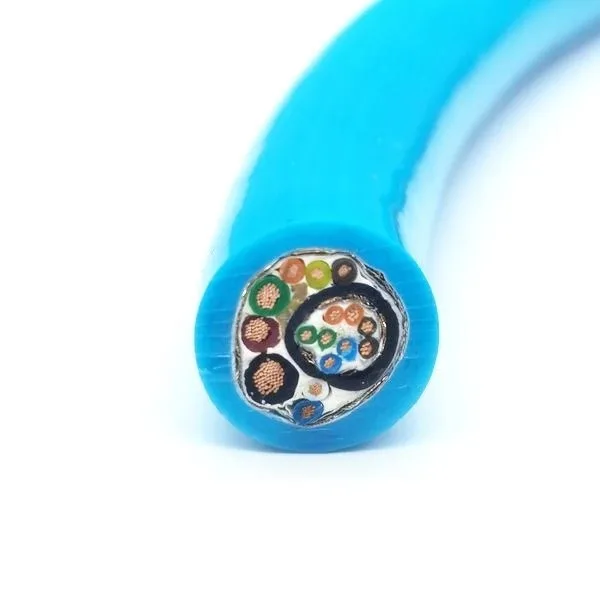

Cat5+Power+Signal Ocean Cable - 1x2.0 mm2 Power, 5x0.2 mm2 Signal and STP Cat5 in One Subsea Cable

Name: Cat5+Power+Signal Ocean Cable - 1x2.0 mm2 Power, 5x0.2 mm2 Signal and STP Cat5 in One Subsea Cable
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Subsea hybrid cable combining 1x2.0 mm2 (14AWG) and 2x1.0 mm2 (17AWG) power cores, 5x0.2 mm2 (24AWG) signal cores and an STP Cat5 unit under a PUR sheath.

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Applications:

Power supply, internet connection, signal transmission and control for subsea equipment.

Construction:

- 1 core x 2.0 mm2 (14AWG)

- 2 cores x 1.0 mm2 (17AWG)

- 5 cores x 0.2 mm2 (24AWG)

- STP Cat5 network unit

Conductor: finely stranded oxygen-free copper, to VDE 0295 Class 6

Insulation: polyethylene

Fillers: water-blocking compound, Kevlar fiber

Shield: aluminium foil plus tinned copper braid, coverage 85% or more

Wrapping: non-woven tape

Outer sheath: PUR

Color: blue

Temperature: -30 C to +90 C

Features: good water resistance, resistance to acids, alkalis and UV, high tear strength; reliable under extreme conditions with a long service life, which helps reduce equipment downtime.
