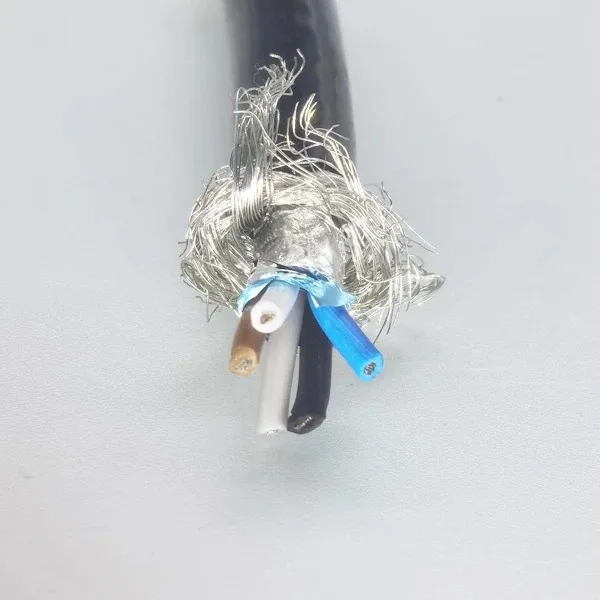

Double-Shielded Subsea Cable - 5x24AWG with Tinned Copper Braid and Aluminium Foil

Name: Double-Shielded Subsea Cable - 5x24AWG with Tinned Copper Braid and Aluminium Foil
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Double-shielded subsea cable with 5x24AWG (0.2 mm2) tinned copper cores, tinned copper braid plus aluminium foil, PE insulation and PUR sheath.

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Applications:

Ø Offshore oil and gas

❖ Renewable energy subsea systems

Ø Defense equipment systems

Ø Offshore equipment systems

ROV and AUV systems

Ø Underwater cameras

Ø Video and lighting systems

❖ Seabed seismic systems

❖ Diving equipment systems

Construction:

- 5 cores x 24AWG (0.2 mm²)

Conductor: tinned copper strands

Shield: tinned copper braid (coverage 80% or less) and aluminium foil

Insulation: polyethylene

Outer sheath: PUR

Color: black

Temperature rating: -30 to +105 C

Polyurethane cable, abbreviated PUR cable, is halogen-free and flame-retardant and offers higher mechanical and chemical resistance, which makes it suitable for harsh environments.

Our subsea cable range uses polyurethane as a high-performance sheath material while keeping the cable flexible, to suit subsea applications that require frequent or continuous bending.

If no suitable cable is available for your application, we also recommend a custom design built around all of your requirements.
