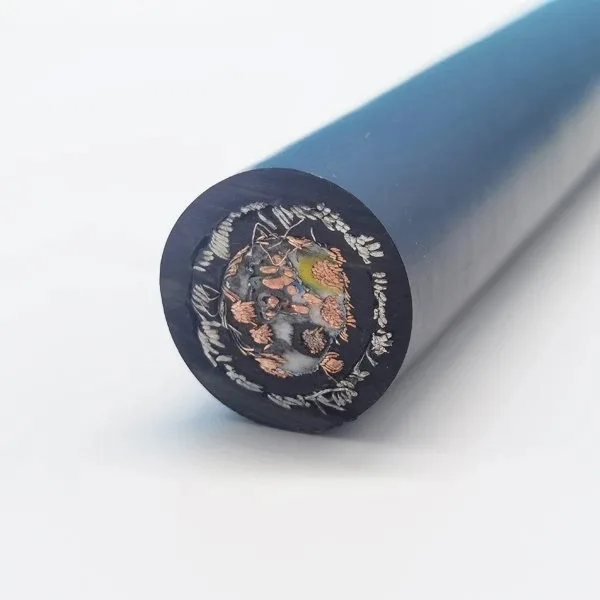

LSZH Armored Marine Cable - 3x1.0 mm2, 2x0.5 mm2 and STP CAT6, Steel Wire Braid

Name: LSZH Armored Marine Cable - 3x1.0 mm2, 2x0.5 mm2 and STP CAT6, Steel Wire Braid
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Shipboard cable with 3x1.0 mm2 and 2x0.5 mm2 cores plus STP CAT6, tinned copper shield, steel wire braid armor and LSZH inner and outer sheaths.

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Applications:

Power connection and control for shipboard equipment.

Construction:

- 3 cores x 1.0 mm²

- 2 cores x 0.5 mm²

- STP CAT6

Conductor: finely stranded oxygen-free copper, to VDE 0295 Class 6

Insulation: polyethylene

Shield: tinned copper braid, coverage 85% or more

Wrapping: non-woven tape

Armor: steel wire braid

Inner and outer sheath: LSZH

Color: black

LSZH stands for low smoke zero halogen and is a halogen-free flame-retardant sheath material. Unlike PVC cables and cables made from other compounds, which release dense black smoke, toxic fumes and acidic gases in a fire, LSZH cables produce very low levels of smoke and toxic fumes and no acidic gases.

The steel wire braid armor provides a protective barrier and guards the cable against environmental damage.

Customization to other specifications is also accepted.
