Marine Power Cable 3×2.5mm², PUR Sheath, 10.6mm OD

Name: Marine Power Cable 3×2.5mm², PUR Sheath, 10.6mm OD
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

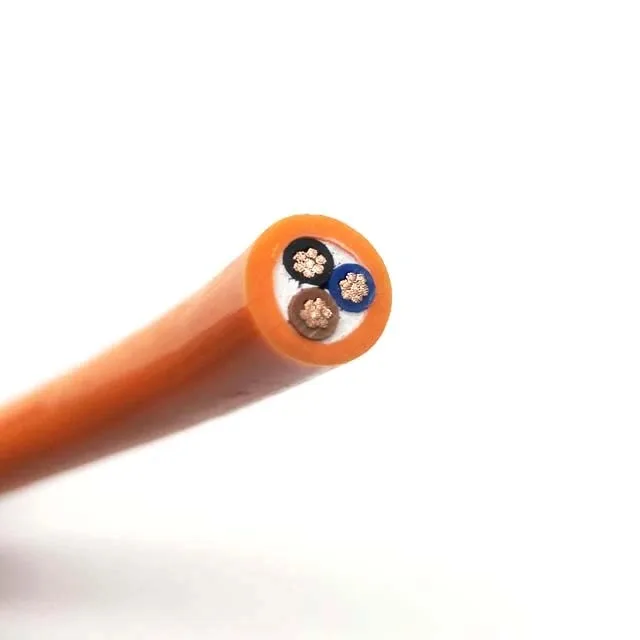

Subsea power cable with three 2.5mm² finely stranded oxygen-free copper cores, polyethylene insulation and an orange halogen-free PUR sheath, 10.6mm OD.

Request pricing → Email engineering

Supports project-specific customisation: conductor cross-section and core count, shielding type, sheath colour, length and print legend can be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application:

Power supply for underwater equipment.

Product construction:

- 3 cores × 2.5mm²

Conductor: finely stranded oxygen-free copper

Insulation: polyethylene

Outer sheath: PUR

Colour: orange

Outer diameter: 10.6mm

Temperature rating: -30~105℃

Polyurethane cable, abbreviated PUR cable, is halogen-free and flame retardant and offers higher mechanical and chemical resistance, which makes it suitable for harsh environments.

Our underwater cable range uses polyurethane as a high-performance sheath material while keeping the cable flexible, to suit subsea applications that require frequent or continuous bending.

If no suitable cable is available for your application, we also recommend a cable customised to all of your requirements.
