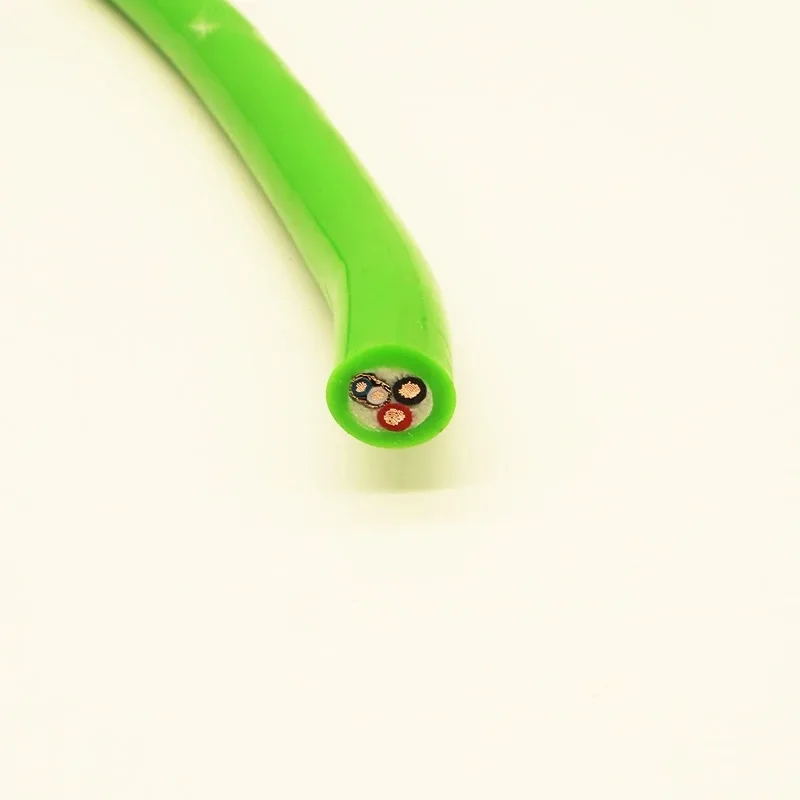

Outdoor Hybrid Power and Signal Cable, 1 Pair 20AWG + 2x16AWG, PUR Sheath, 9.8 mm

Name: Outdoor Hybrid Power and Signal Cable, 1 Pair 20AWG + 2x16AWG, PUR Sheath, 9.8 mm
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Abrasion-resistant outdoor hybrid cable: one shielded 20AWG pair and two 16AWG conductors, tinned copper braid plus foil, green PUR sheath, 9.8 mm OD.

Request pricing → Email engineering

Custom manufacturing is available for each project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

Signal transmission and power for harsh-environment applications.

Product construction:

- 1 shielded pair 20AWG (0.5 mm²)

- 2 conductors 16AWG (1.5 mm

²)

Conductor: oxygen-free copper strands

Insulation: polyethylene

Wrapping: non-woven fabric

Shielding: tinned copper braid and aluminium foil

Outer sheath: PUR

Colour: green

Outer diameter: 9.8 ± 0.5 mm

The outdoor cable is an abrasion-resistant cable suitable for a range of outdoor environments. It is used for power supply between outdoor and indoor areas, and between underwater and onshore locations.

This green cable is made from high-quality materials and is designed for use in extreme weather conditions. In undisturbed installations its expected service life is long. If the cable needs to be replaced, this is usually due to physical damage rather than wear.

The outer sheath is made of highly abrasion-resistant PU (polyurethane) and encloses the individual conductor insulations. This construction makes the cable very robust and protects the copper from abrasion.
