PAIDECABLE Network and Power Umbilical Cable, 3x1.5 mm² + UTP CAT5

Name: PAIDECABLE Network and Power Umbilical Cable, 3x1.5 mm² + UTP CAT5
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Subsea hybrid umbilical combining 3x1.5 mm² power cores with a UTP CAT5 data unit, oxygen-free copper to VDE0295 CLASS6 and a black PUR sheath.

Request pricing → Email engineering

Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.

Product introduction

Applications:

- Offshore oil and gas

- Renewable energy subsea systems

- Defense equipment systems

- Offshore equipment systems

ROV and AUV systems

- Underwater cameras

- Video and lighting systems

- Seabed seismic systems

- Diving equipment systems

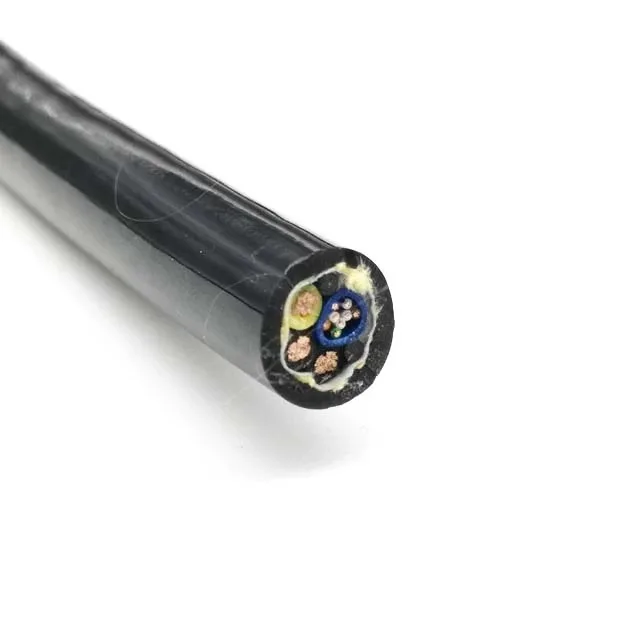

Product construction:

- 3 cores × 1.5 mm²

(16AWG)

- UTP CAT5

Conductor: finely stranded oxygen-free copper, to VDE0295 CLASS6

Insulation: polyethylene

Outer sheath: PUR

Color: black

Polyurethane cable, abbreviated PUR cable, is halogen-free, flame retardant and has higher mechanical and chemical resistance, which makes the cable suitable for harsh environments.

Our subsea range uses polyurethane as a high-performance sheath material and keeps the cable flexible for underwater applications requiring frequent or continuous bending.

If no standard cable meets your application requirements, we also offer cables custom-built to all of your requirements.
