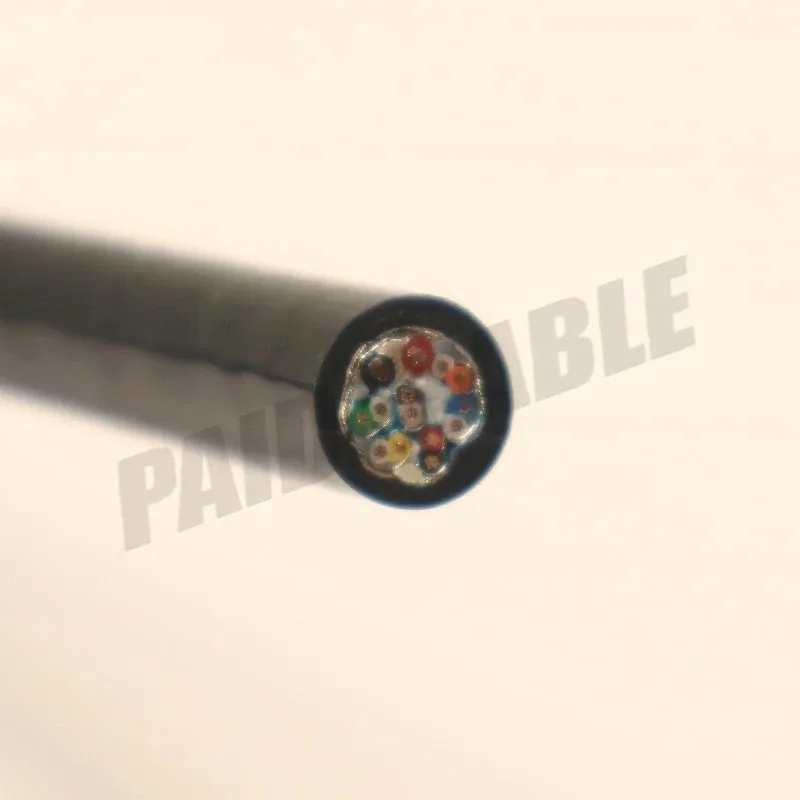

PDK80301-TS 2×20AWG + 6×2×24AWG Acoustic Underwater Cable
Underwater Power Cables · Marine & Subsea
Acoustic underwater cable with 2 × 20AWG cores and 6 twisted pairs of 24AWG, 8.7 mm TPU sheath, 300/500 V rated, 20 MPa watertight, LCP strength member.
Product overview
Technical specifications
Conductor: 2 × 20AWG cores plus 6 twisted pairs.
Insulation: polyethylene
Shielding: aluminium foil on each pair, overall shield, tinned copper braid (≥80%)
Sheath: TPU
Strength member: LCP fillers (1000N)
Diameter: 8.7 ± 0.5 mm
Rated voltage: 300/500 V
Temperature: -40 °C to +90 °C
Key features
Watertight: 20 MPa
High-density configuration for multiple signal or power circuits.
Robust construction: UV-resistant sheath and corrosion-resistant materials.
Flexible and durable: retains flexibility at both low (-40 °C) and high (+85 °C) temperatures.
EMI/RFI protection: optional aluminium foil plus braid shield (customisable).
Applications
- Submersible pumps and underwater robots
- Marine sensors, sonar systems and offshore equipment
- Outdoor LED lighting and solar installations
- Industrial automation in wet environments
- Railway and transport systems
Packaging and warranty
- Standard length: 100 m per reel (custom lengths available).
- 12-month warranty against manufacturing defects.
Designed for harsh environments and proven in service worldwide.
