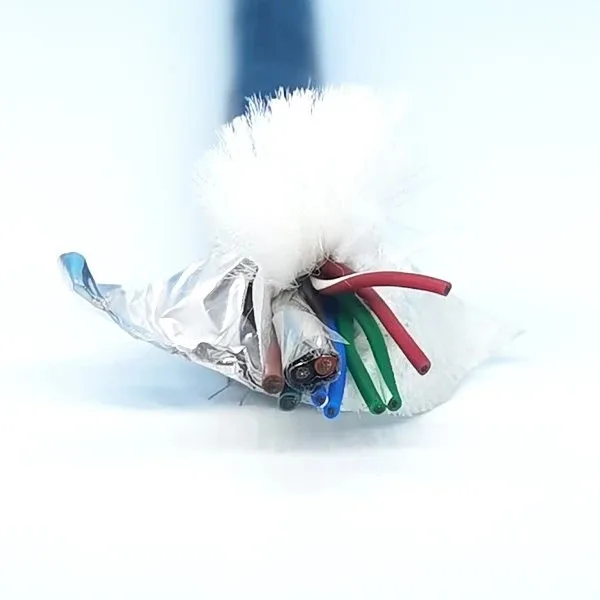

Underwater Composite Cable 1-60 Cores 300/500 V
Underwater Power Cables · Marine & Subsea
Subsea composite cable from 1 to 60 cores with PE, TPEE or FEP insulation and a PUR sheath, 100 kg to 2000 kg tensile strength, rated 300/500 V.
Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product overview
For subsea applications.
Specification: 1-60 cores
Core insulation: PE/TPEE/FEP
Color: to requirement
Sheath: PUR
Tensile strength: 100 kg-2000 kg (or to requirement)
Temperature range: -30℃~105℃
Voltage: 300/500V
Properties: oil resistant, flame retardant, hydrolysis resistant, antibacterial, UV resistant
