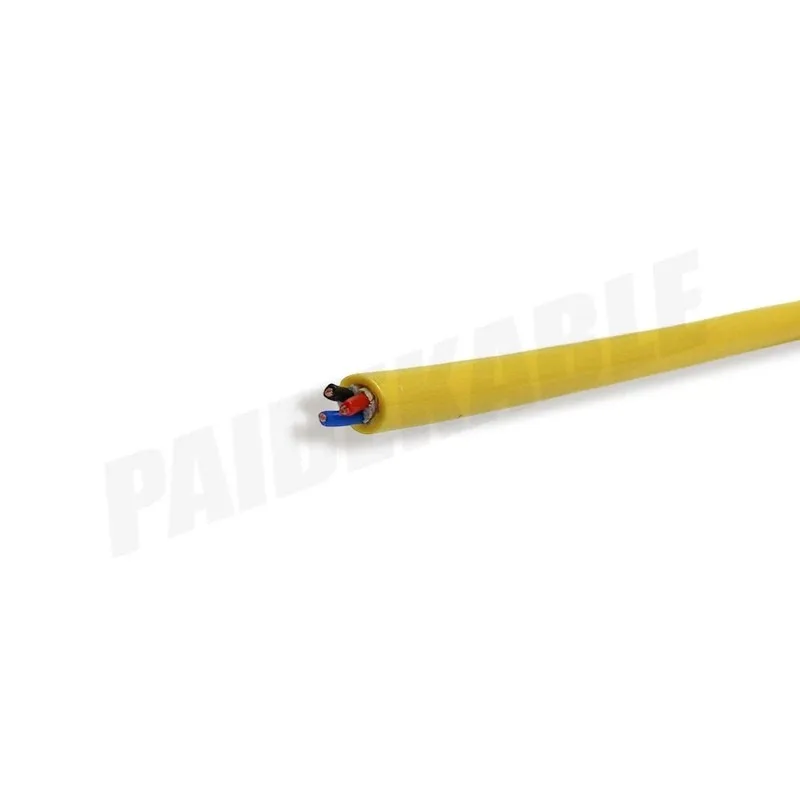

PDK81301-3×0.5 Submersible Power Cable 300 kg

Name: PDK81301-3×0.5 Submersible Power Cable 300 kg
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Three-core 0.5 mm² submersible power cable with bare copper conductor, HDPE insulation and seamless PUR sheath, 300 kg breaking load, 300/500 V, 6 mm.

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Submersible power cable (3×0.5 mm², 300 kg tensile strength)

Our submersible power cable is designed for reliability and durability in demanding subsea applications. Its robust construction ensures consistent power transmission and control even in harsh aquatic environments.

Key features

Excellent watertightness: a fully watertight seamless sheath prevents water ingress and corrosion, ensuring long-term operational integrity.

High tensile strength: minimum breaking strength of 300 kg, so the cable withstands substantial pull, snagging and current drag during deployment and operation.

Durable and abrasion resistant: the tough outer sheath provides protection against abrasion, cutting and the effects of rock, debris and other subsea hazards.

Flexible and easy to handle: despite its robust construction the cable remains highly flexible, which aids installation, coiling and handling in a range of subsea environments.

Corrosion resistance: resistant to salt water, oil and chemicals, making it suitable for fresh water and marine environments.

Technical specifications

Conductor: bare copper, stranded for flexibility.

Configuration: 3 cores

Cross-sectional area: 0.5 mm² per core

Insulation: high-density polyethylene.

Sheath: PUR

Tensile strength: 300 kg (minimum breaking load).

Rated voltage: 300/500V

Cable diameter: 6 mm

Applications

The cable is well suited to a wide range of submersible equipment, including:

* Submersible pumps

* ROVs (remotely operated vehicles) and AUVs

* Submersible sensors and cameras

* Dredging equipment

* Marine and aquaculture systems

* Subsea lighting

Why choose our cable?

Durability, performance and safety are at the core of our design. The cable provides a reliable solution for critical subsea power requirements and reduces downtime and maintenance cost.

For more detailed technical data sheets or custom length enquiries, please contact our sales team.
