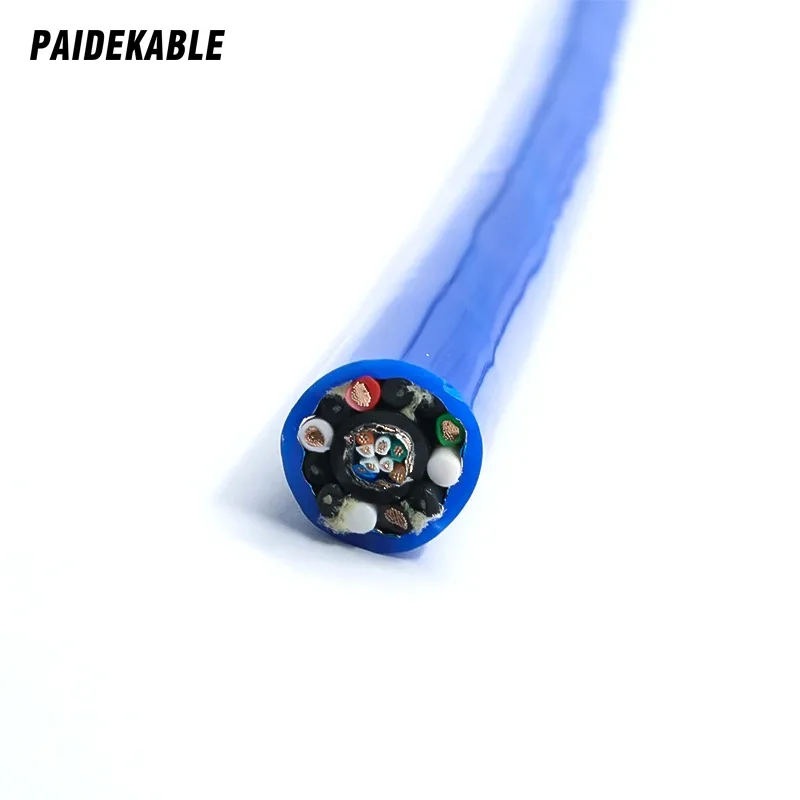

PDK81301-4×1.0+STP CAT5 Subsea Water-Blocking Cable, 12.6mm PUR

Product introduction

This CAT5 water-blocking cable is designed for high-speed subsea data transmission and harsh marine environments. It integrates an industrial CAT5e Ethernet core into a multi-layer watertight construction, using FEP (fluorinated ethylene propylene) as the core insulation. The cable provides radial water-blocking and suits ROVs, seabed observatories, shipboard bulkhead communication and offshore oil platforms, where reliable data transmission and a strict water seal are essential.

Model

PDK81301-4*1.0+STP CAT5

Specification

4*1.0+STP CAT5

Conductor material

Tinned copper stranded wire

Insulation material

Polypropylene

Sheath material

Polyether polyurethane (PUR)

Sheath outer diameter (mm)

12.6±0.3mm

Sheath

Colour:

Navy blue

Temperature range

-40 to +105 °C

Water pressure resistance

10 MPa

The cable combines good dielectric performance with tolerance of extreme environments, maintaining stable high-speed Ethernet communication under deep-sea pressure and long-term seawater immersion.

Key features – FEP insulated core

The FEP insulated CAT5 communication core provides good signal integrity, a wide operating range from -40 °C to +105 °C, negligible moisture absorption, strong chemical resistance and inherent flame retardancy in a single material.

Suitable for

Subsea robots (ROV/AUV) and underwater cameras requiring real-time video and data transmission

Submarine and shipboard Ethernet backbones with watertight bulkhead penetrations

Seabed observatories and ocean monitoring networks (cabled subsea nodes)

Offshore drilling platforms and marine renewable energy systems

Military and defence underwater communication systems

Any subsea application needing reliable CAT5 Ethernet and watertight integrity without mechanical tension requirements

The cable meets both the need for high-speed data transmission (CAT5e) and a robust water seal under high hydrostatic pressure.

It is a suitable solution for marine engineering, subsea monitoring, marine research and underwater defence communications.
