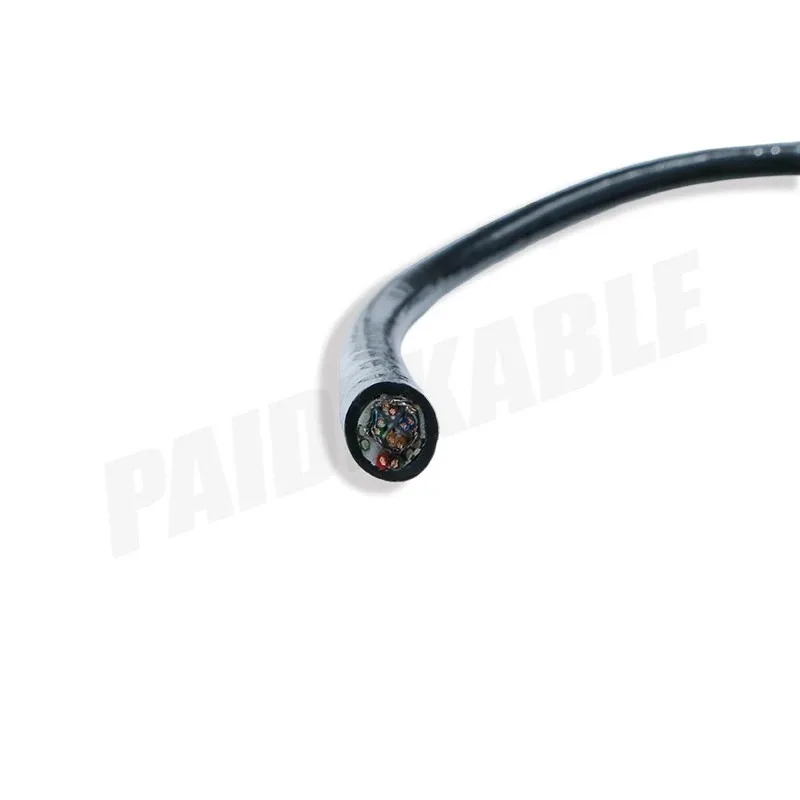

PDK81302-2x22AWG+STP CAT6 Subsea Water-Blocking Cable - 300 m, 100 kg

Name: PDK81302-2x22AWG+STP CAT6 Subsea Water-Blocking Cable - 300 m, 100 kg
Brand: PAIDE

Underwater Power Cables · Marine & Subsea

Subsea Cat6 STP cable with 2x22AWG power conductors, 300 m longitudinal water blocking and 100 kg tensile strength for permanent underwater deployment.

Construction

2x22AWG+STP CAT6 Subsea Water

Tensile strength

100 kg

Request pricing → Email engineering

Customized per project: conductor cross-section and core count, shield type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product description

Designed for stable reliability in the most demanding subsea environments.

The cable is designed for permanent deployment in challenging subsea applications, combining high mechanical strength with longitudinal water-blocking technology so that mission-critical performance is maintained at depths of up to 300 m.

Key features and benefits

Reliable longitudinal water blocking to 300 m

The fully integrated water-blocking construction prevents water from entering and migrating along the whole cable length. The core stays dry even under high pressure, preserving signal integrity over time and protecting connected equipment from water damage.

High-performance data transmission

The cable meets CAT6 requirements and uses an overall shielded twisted pair (STP) construction, supporting Gigabit Ethernet and PoE (Power over Ethernet). It suppresses crosstalk and electromagnetic interference (EMI) effectively, keeping video, control and data transmission clean and fast.

Mechanical durability

The cable has a tensile strength of 100 kg and withstands current load, suspended weight and accidental pulls during installation and operation. Its robust design gives a long service life together with crush and abrasion resistance.

Potting compound encapsulation

The cable core is protected by a dedicated corrosion-resistant potting compound. This provides a complete seal around the conductors and protects against moisture, damp and chemical attack, making the cable suitable for both fresh water and salt water applications.

Integrated power and data conductors

The configuration includes 2 x 22AWG copper conductors for low-voltage supply to remote devices, complementing the four data pairs. This integrated design removes the need for a separate power cable and simplifies deployment.

Technical specifications

Model: PDK81302-2x22AWG+STP CAT6

Construction: 4 shielded twisted pairs (STP) + 2 x 22AWG power conductors

Longitudinal water blocking: 300 m

Tensile strength: 100 kg

Sheath: high-density, abrasion-resistant, UV-stabilized polyurethane (PUR)

Key technology: internal potting gel fill
