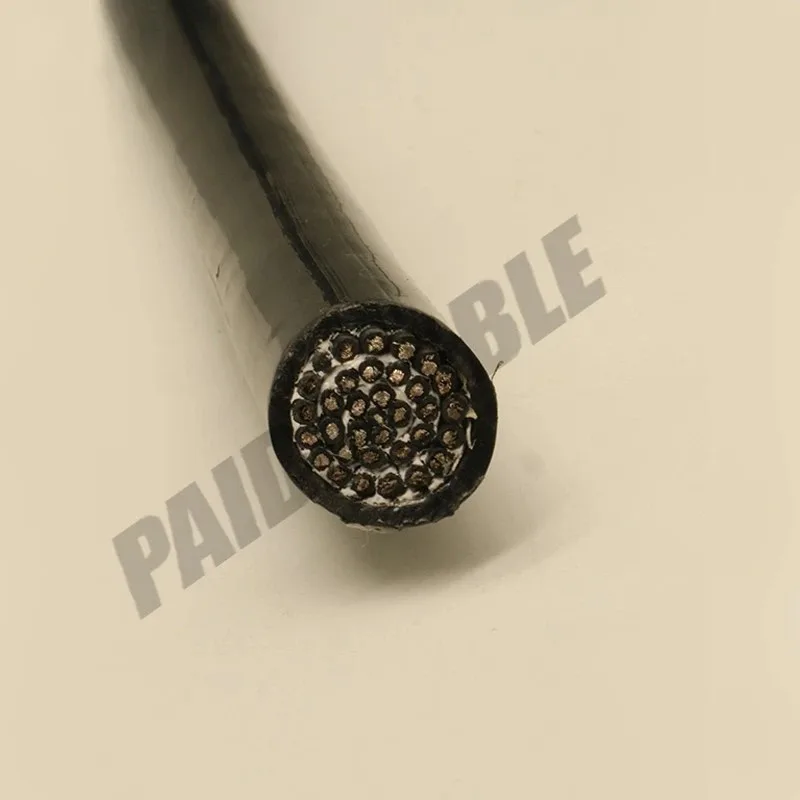

PDK81302 32x1.0 mm² Longitudinal Watertight Hybrid Cable
Underwater Power Cables · Marine & Subsea
Gel-filled 32-core 1.0 mm² hybrid cable with longitudinal water-blocking, tinned copper conductors and TPU sheath, 300/500 V, 21 mm diameter.
Product introduction
Technical specification
Conductor: 32 cores × 1.0 mm², stranded tinned copper conductor
Insulation: polyvinyl chloride (PVC)
Construction: gel-filled
Outer sheath: TPU
Diameter: 21 ±1 mm
Rated voltage: 300/500 V
Temperature: -40 °C to 90 °C
Key features
Longitudinal watertight design: gel filling the interstitial spaces blocks water from penetrating along the length of the cable.
32 cores × 1.0 mm²: a high-density configuration for multi-signal or power transmission.
Robust construction: tinned copper conductors, UV-resistant sheath and corrosion-resistant materials.
Flexible and durable: retains flexibility even at low temperature (-40 °C) or high temperature (+85 °C).
EMI/RFI protection: optional aluminum foil plus braid shield (customizable).
Applications
- Submersible pumps and underwater vehicles
- Marine sensors, sonar systems and offshore equipment
- Outdoor LED lighting and solar installations
- Industrial automation in wet environments
- Railway and transport systems
Packaging and warranty
- Standard length: 100 m per coil (custom lengths available).
- 12-month warranty against manufacturing defects.
Designed for harsh environments.
