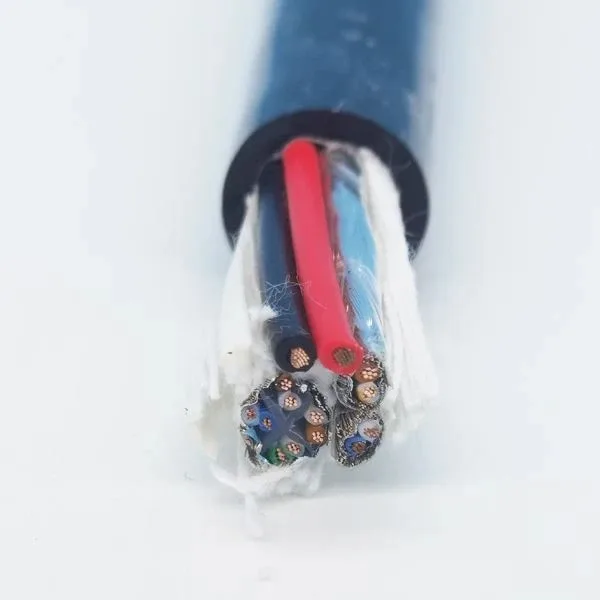

Underwater Submarine Hybrid Cable 2×0.5mm² + 2×2×0.2mm² + STP Cat6

Name: Underwater Submarine Hybrid Cable 2×0.5mm² + 2×2×0.2mm² + STP Cat6
Brand: PAIDE
SKU: On request

Underwater Power Cables · Marine & Subsea

On request

Hybrid submarine cable with 2×0.5mm² power cores, 2 twisted pairs of 0.2mm² and an STP Cat6 element for underwater power, Ethernet and RS485 signals.

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Application:

Power supply, internet connection and signal transmission for underwater equipment.

Cable construction:

- 2 cores 0.5mm² (20AWG)

- 2 twisted pairs 0.2mm² (24AWG)

- STP Cat6 network cable

Conductor: finely stranded oxygen-free copper, to VDE0295 CLASS6

Insulation: polyethylene

Shield: aluminium foil and tinned copper wire braid (coverage above 85%)

Wrapping: non-woven tape

Outer jacket: PUR

Color: black

The composite underwater construction consists of a network camera cable, an RS485 communication cable and a power cable. The network element is normally Cat5, Cat5E, Cat6 or Cat6A. The power cores are usually 2-3 cores, with 0.5/1.0/1.5mm² available. The RS485 channel is one 24AWG twisted pair, a high-grade conductor for underwater applications.
