Underwater Hybrid Cable Fiber Power and Signal - 3x2.0+2x2x0.2ATS+6SMF
Underwater Power Cables · Marine & Subsea

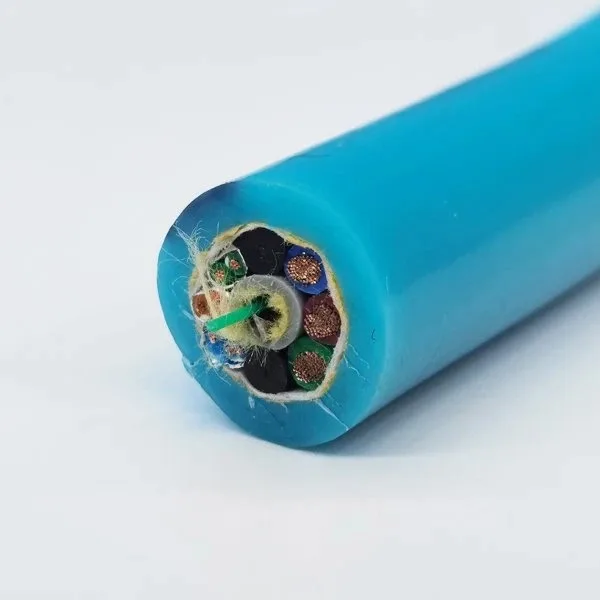

Subsea hybrid cable with 3x2.0 mm2 power cores, 2x2x0.2 ATS signal pairs and 6 single-mode armored fibers, Kevlar strength member and PUR sheath.
Product description
For subsea applications.
Specification: 3x2.0+2x2x0.2ATS+6SMF
Core insulation: PE
Shield: tinned copper braid, aluminium foil (signal pairs)
Fiber: single-mode, armored
Color: blue
Strength member: Kevlar braid
Sheath: PUR
Temperature range: -30 C to +105 C
Features of our subsea cables:
Durability:
Designed to withstand the harsh marine environment, including salt water corrosion, water pressure and potential contact with marine growth or vessel traffic.
Flexibility
Our cables are highly flexible, which allows easy installation and routing around seabed obstacles.
Environmental resistance
Our cables resist temperature fluctuation, UV exposure and the chemical attack of seawater.
Long service life
With correct installation and maintenance, our cables achieve a long service life, often extending over several decades.
Customization
We can customize cables to specific requirements, such as length, specification, material type and other parameters.
