Orange Underwater Floating Cable 75 Ohm Coax + 6×14AWG

Name: Orange Underwater Floating Cable 75 Ohm Coax + 6×14AWG
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Custom orange floating cable with a 75 ohm coax unit, three 20AWG pairs, 2 × 16AWG and 6 × 14AWG cores, 300 kg aramid braid and a 32.0 mm PUR sheath.

Request pricing → Email engineering

Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Applications

- Offshore oil and gas

- Renewable energy subsea systems

- Offshore equipment systems

- ROV and AUV systems

- Underwater cameras

- Diving equipment systems

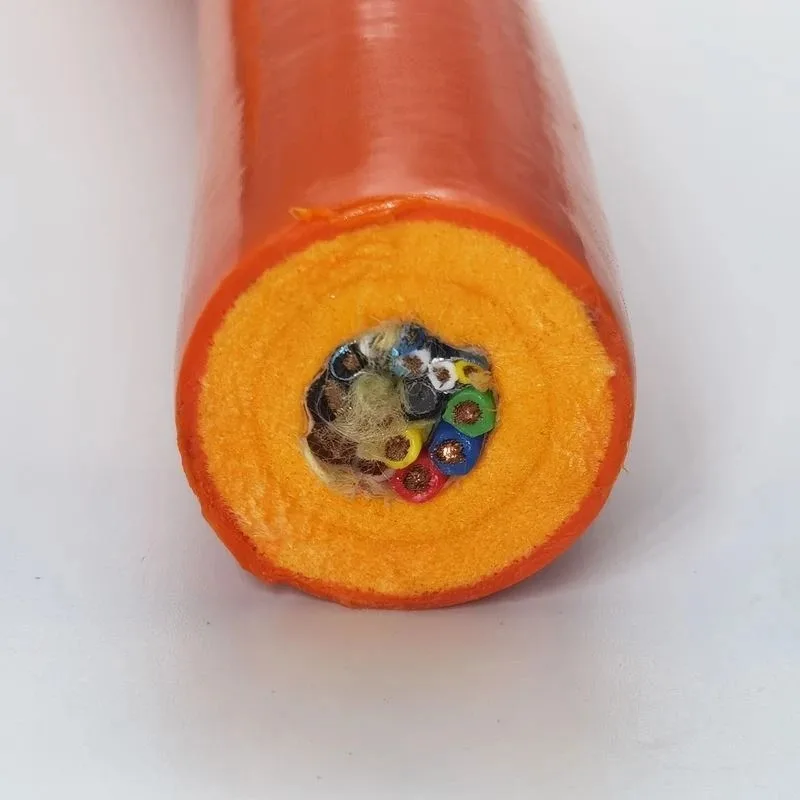

Cable construction:

- 75 ohm coaxial

- 3 pairs 20AWG (0.5 mm²)

- 2 × 16AWG (1.3 mm²)

- 6 × 14AWG (2.0 mm²)

Insulation: polyethylene

Strength member: aramid braid (300 kg)

Fillers: aramid + water-blocking yarn

Temperature range: -30 °C to +80 °C

Inner sheath: foamed PUR

Outer sheath: PUR

Outer sheath colour: orange

Outer diameter: 32.0 mm

Bending radius: 10D

Temperature range: -40 °C to +90 °C

Features: oil resistance, flame retardance, hydrolysis resistance, resistance to microbial attack, UV resistance, etc.

This cable was customised to customer requirements. Underwater floating cables are one of our standard product lines, and we can customise different sizes and types to each customer's requirements.
