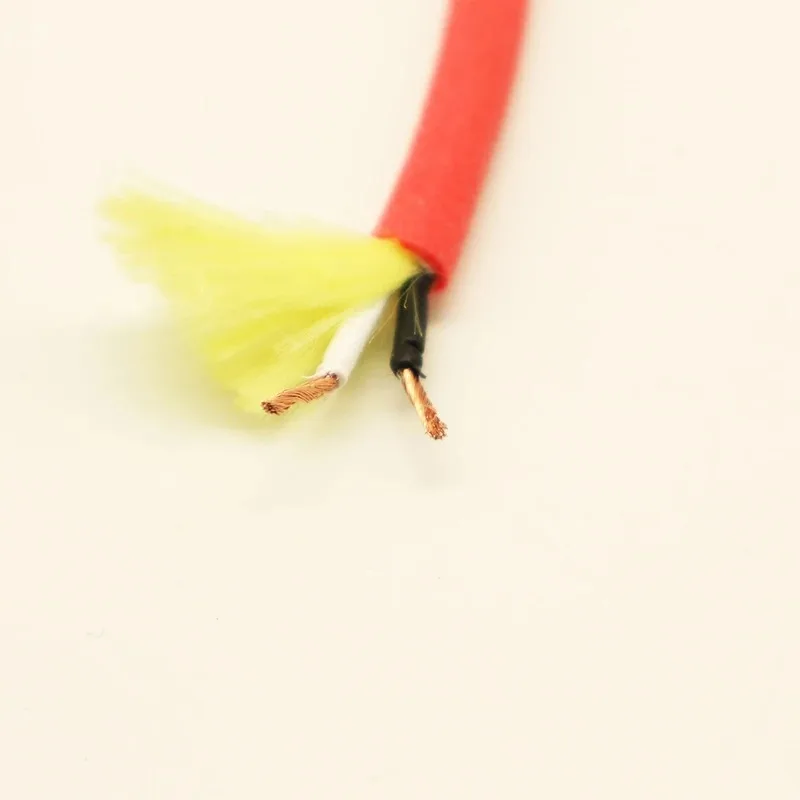

PDK81600-2×20AWG 150 kg Buoyant Cable 4.6 mm
Zero-Buoyancy Cables · Marine & Subsea
Two-core 20AWG (0.5 mm²) neutrally buoyant cable for ROV and AUV systems with a 150 kg aramid strength member, foam PUR sheath, 4.6 mm diameter.
Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product overview
Applications: ROV and AUV systems.
Model: PDK81600-2×20AWG-150KG
Cable construction:
- 2 cores 20AWG (0.5 mm²)
Strength member: aramid filler (150 kg)
Temperature range: -30℃~105℃
Sheath: PUR foam
Jacket color: red
Outer diameter: 4.6 mm
Properties: oil resistant, flame retardant, hydrolysis resistant, antibacterial, UV resistant.
The subsea ROV cable is one of our typical cable products. We can customize different sizes and different types according to each customer's requirements.
