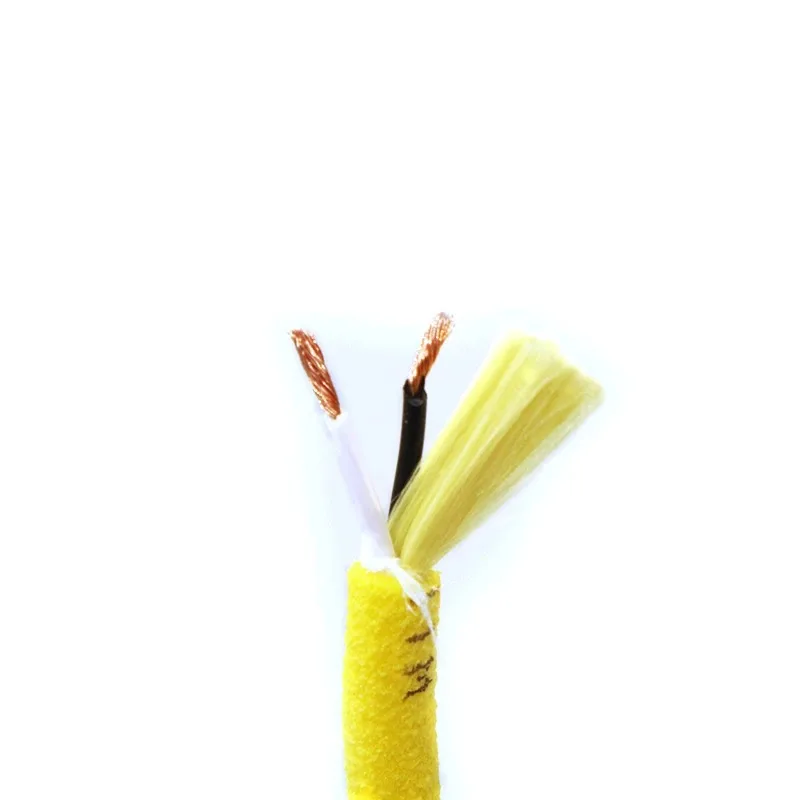

PDK81600 2x24AWG-100KG Neutrally Buoyant Cable
Zero-Buoyancy Cables · Marine & Subsea
Neutrally buoyant two-core 24AWG cable for ROV and AUV systems, Kevlar strength member rated 100 kg, yellow PUR foam sheath and 4.2 mm outer diameter.
Custom-built to project: conductor cross-section and core count, shielding type, sheath color, length and print marking can be adjusted to the working conditions; technical parameters are subject to the specification file confirmed by both parties.
Product introduction
Applications: ROV and AUV systems.
Model: PDK81600-2x24AWG-100KG
Cable construction:
- 2 cores 24AWG
Strength member: Kevlar filler (100 kg)
Temperature range: -30 °C to 80 °C
Sheath: PUR foam
Outer sheath color: yellow
Outer diameter: 4.2 mm
Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant.
The subsea ROV cable is one of our typical cable products. We can customize different sizes and different types to each customer's requirements.
