PDK81600-2×2×26AWG-50KG-DJ Neutrally Buoyant ROV Tether, 2 Pairs 26AWG, 500 m

Name: PDK81600-2×2×26AWG-50KG-DJ Neutrally Buoyant ROV Tether, 2 Pairs 26AWG, 500 m
Brand: PAIDE
SKU: PDK81600-2×2×26AWG-50KG-DJ

Zero-Buoyancy Cables · Marine & Subsea

PDK81600-2×2×26AWG-50KG-DJ

Four-core neutrally buoyant ROV tether with two 26AWG pairs, 50kg breaking strength, water-blocked Kevlar and polyester fillers and a yellow PUR jacket.

Model

PDK81600-2×2×26AWG-50KG-DJ

Specification

2 × 2 × 26AWG (0.14mm²)

Insulation

Strength member

Kevlar fillers, 50 kg

Inner jacket

Foamed PUR

Outer jacket

PUR, yellow

Outer diameter

7.2 mm

Temperature range

-30 °C to +105 °C

Depth rating

500 m

Tensile strength

50 kg

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

The ROV tether is designed for remotely operated vehicles and other subsea applications.

Model: PDK81600-2×2×26AWG-50KG-DJ

Cable construction:

- 2 twisted pairs, 26AWG (0.14mm²)

Insulation material: PE

Tensile strength: 50 kg (Kevlar fillers)

Inner jacket: foamed PUR

Outer jacket: PUR

Outer jacket colour: yellow

Temperature range: -30 °C to +105 °C

Outer diameter: 7.2 mm

Depth rating: 500 m

Properties: oil-resistant, flame-retardant, hydrolysis-resistant, anti-microbial, UV-resistant.

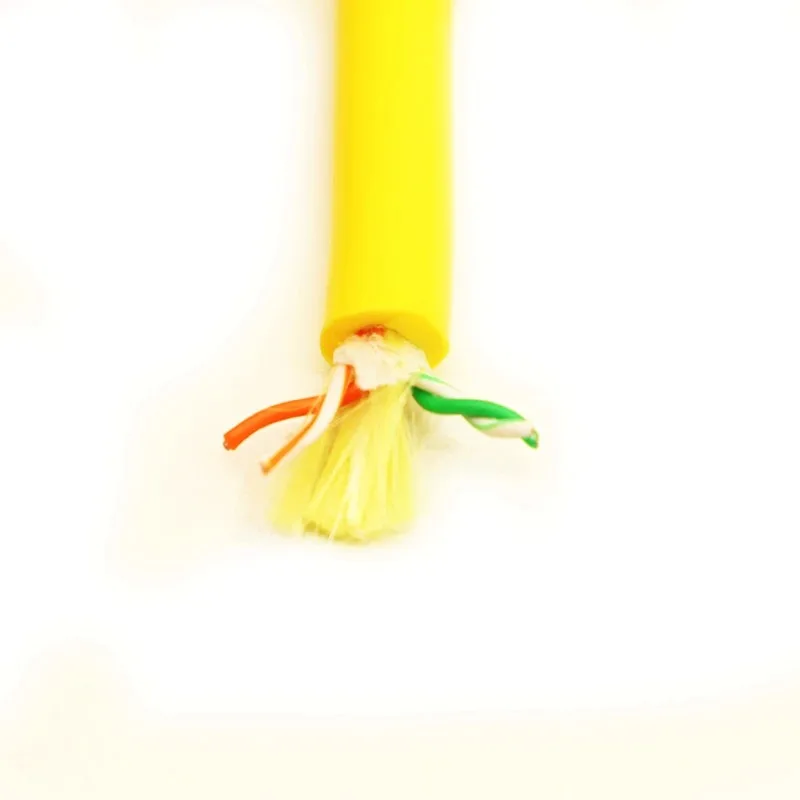

This 4-core floating cable is an ROV tether. It is neutrally buoyant, has a breaking strength of 50 kg and contains water-blocking fibres that seal any leak. The core contains Kevlar yarns for strength and polyester yarns as space fillers; both are impregnated with a water-blocking compound so that a nick or crack in the cable cannot cause a leak.

The high-visibility yellow polyurethane foam jacket resists abrasion and provides neutral buoyancy. The stiffness of the cable is set to be flexible enough to give the ROV sufficient freedom of movement, yet stiff enough that it does not kink easily.

If you cannot find the model you need, please contact us at any time.
