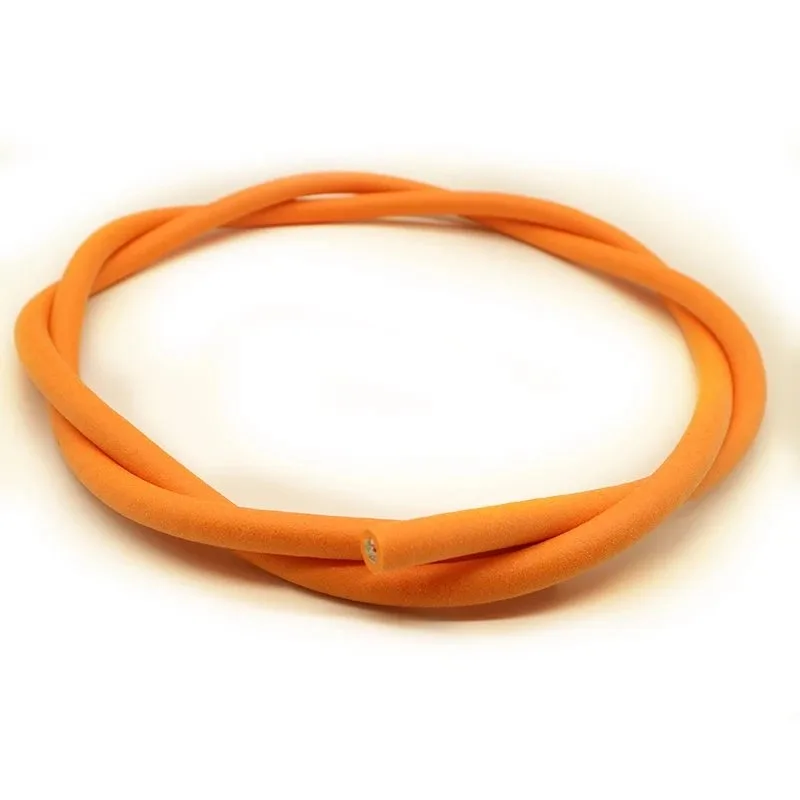

PDK81600-4×2×26AWG ROV Tether 150 kg, 500 m

Name: PDK81600-4×2×26AWG ROV Tether 150 kg, 500 m
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

Neutrally buoyant ROV tether of 4 × 2 × 26AWG pairs with 150 kg aramid strength, 7.9 mm foamed PUR sheath, rated to 500 m depth.

Construction

4×2×26AWG ROV Tether 150 kg, 500 m

Tensile strength

150 kg

Request pricing → Email engineering

Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

The ROV tether is a high-quality tether designed for remotely operated vehicles and other subsea applications.

Model: PDK81600-4×2×26AWG-150KG-DJ

Cable construction:

- 4 twisted pairs 26AWG (0.14 mm²)

Insulation material: PE

Tensile strength: 150 kg (aramid fillers)

Sheath: foamed PUR

Outer sheath colour: orange

Temperature range: -30 °C to +105 °C

Outer diameter: 7.9 mm

Depth rating: 500 m

Features: oil resistance, flame retardance, hydrolysis resistance, resistance to microbial attack, UV resistance, etc.

This eight-core floating cable is an ROV tether. It is neutrally buoyant, has a breaking strength of 150 kg, and incorporates water-blocking fibres that seal any leak. The core contains aramid yarns for strength and polyester yarns as space fillers. Both fibre types are impregnated with a water-blocking compound so that nicks or cracks in the cable do not cause leakage.

The high-visibility polyurethane foam sheath resists abrasion and provides neutral buoyancy. The cable stiffness is designed to be flexible enough to give the ROV sufficient freedom of movement, yet stiff enough that it does not twist easily.

If you cannot find the model you need, please contact us at any time.
