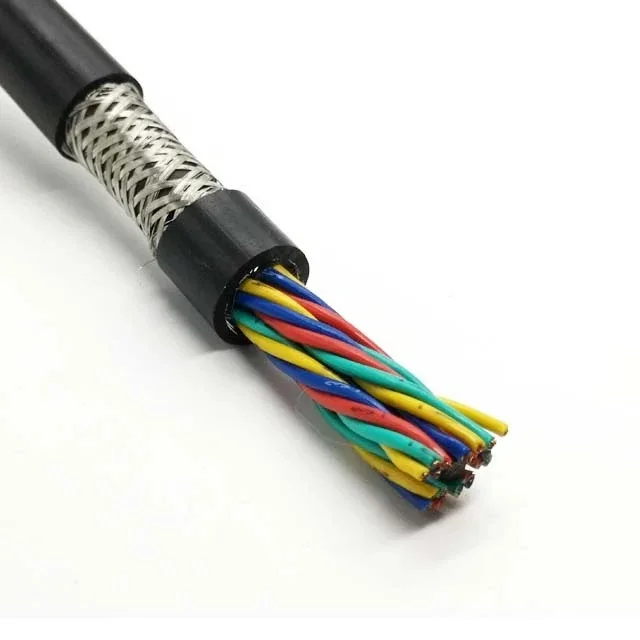

20-Core 0.5 mm² Drag Chain Cable, PVC Sheath, 3 Million Cycles

Name: 20-Core 0.5 mm² Drag Chain Cable, PVC Sheath, 3 Million Cycles
Brand: PAIDE

Drag Chain Cables · Industrial Automation

Twenty-core 0.5 mm² drag chain cable with PVC insulation, tinned copper braid and PVC inner and outer sheaths, rated for over 3 million flex cycles.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Drag chain cable, also called cable carrier cable, is well suited to the machine tool industry, robotics and machine production, and anywhere high flexibility is required. These cables are suitable for freely moving applications with moderate mechanical stress.

Construction:

- 20 cores 0.5 mm² (20AWG)

Conductor: oxygen-free copper stranded wire

Insulation material: PVC

Shield: tinned copper braid (overall shield, coverage up to 80%)

Wrap: non-woven tape

Inner sheath: PVC

Outer sheath: PVC

Outer sheath colour: black

Min. bending radius: fixed installation 5D, moving installation 7.5D

Bending cycles: more than 3 million

Temperature range: fixed installation -15 °C to +70 °C, moving installation -5 °C to +70 °C
