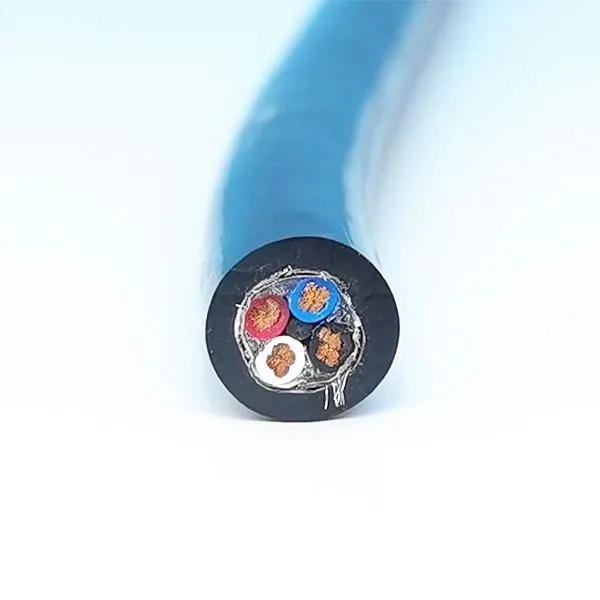

4 Core 1.5 mm² PUR Robotic Arm Torsion Cable, 85% Tinned Copper Braid

Name: 4 Core 1.5 mm² PUR Robotic Arm Torsion Cable, 85% Tinned Copper Braid
Brand: PAIDE

Drag Chain Cables · Industrial Automation

Four-core 1.5 mm² oxygen-free copper torsion-resistant robot cable to VDE 0295 class 6, 85% tinned copper braid shield and PUR sheath.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Applications:

For CNC machine tools, servo encoders, manipulators and similar equipment.

Cable construction:

- 4 cores 1.5 mm²

Conductor: stranded oxygen-free copper, according to VDE 0295 class 6

Insulation: polyethylene

Insulation colours: red, black, white, blue

Shield: tinned copper wire braid (coverage above 85%)

Outer sheath: PUR

Colour: black

Features: water resistant, oil resistant, cold resistant, UV resistant, abrasion resistant, flame retardant.

Torsion-resistant robot cable is a connection cable used in various industrial fields, such as industrial robots, factories and machine tool manufacturing. These cables are suitable for medium mechanical loads, especially friction, with high flexibility against torsional stress and free bending movement under tensile-free load. They can be used where drag chains are not possible for structural reasons, and also in low-temperature, dry and very humid rooms and in unprotected locations.
