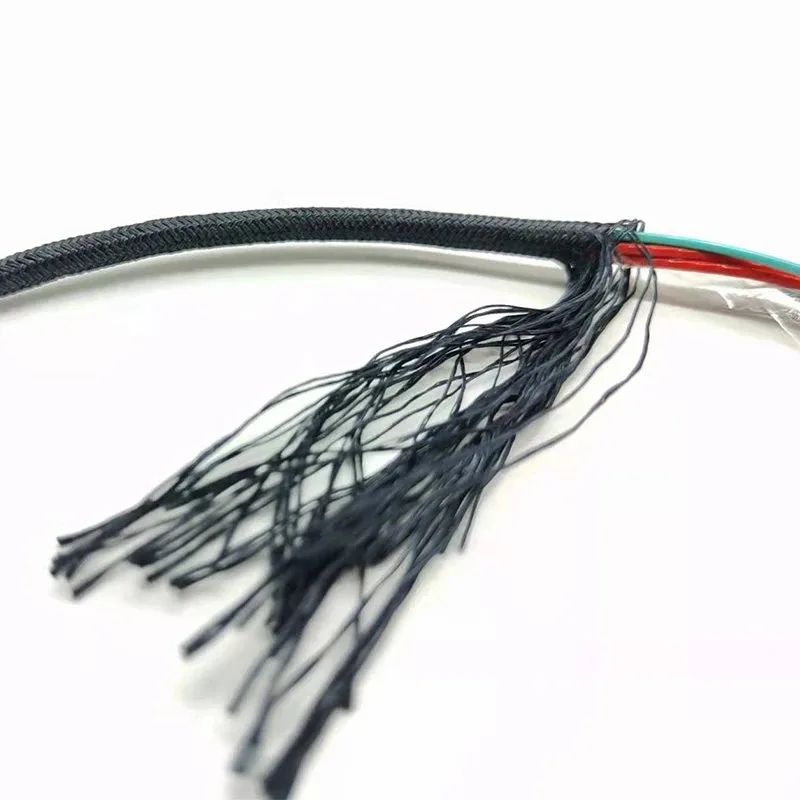

PDK41300-2×18AWG+4SMF Tethered Drone Cable, Hybrid Power and Fibre, OD 5.2 mm

Name: PDK41300-2×18AWG+4SMF Tethered Drone Cable, Hybrid Power and Fibre, OD 5.2 mm
Brand: PAIDE

Tethered Drone Cables · Tethered Systems

Hybrid tethered drone cable with two 18AWG (0.82 mm²) silver-plated copper cores and four G657A2 single-mode fibres, FEP/PTFE insulation, OD 5.2 mm.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Fly higher, see further and do more with a durable, lightweight hybrid cable solution.

Model: PDK41300-2×18AWG+4SMF

Cable construction:

- 2 cores 18AWG (0.82 mm²)

- 4 single-mode fibres (fibre type: G657A2)

Insulation material: FEP/PTFE

Conductor: silver-plated copper / lightweight copper alloy

Sheath: high-strength aramid fibre

Outer sheath colour: black

Temperature range: -55 to +150 °C

Outer diameter: 5.2 mm
