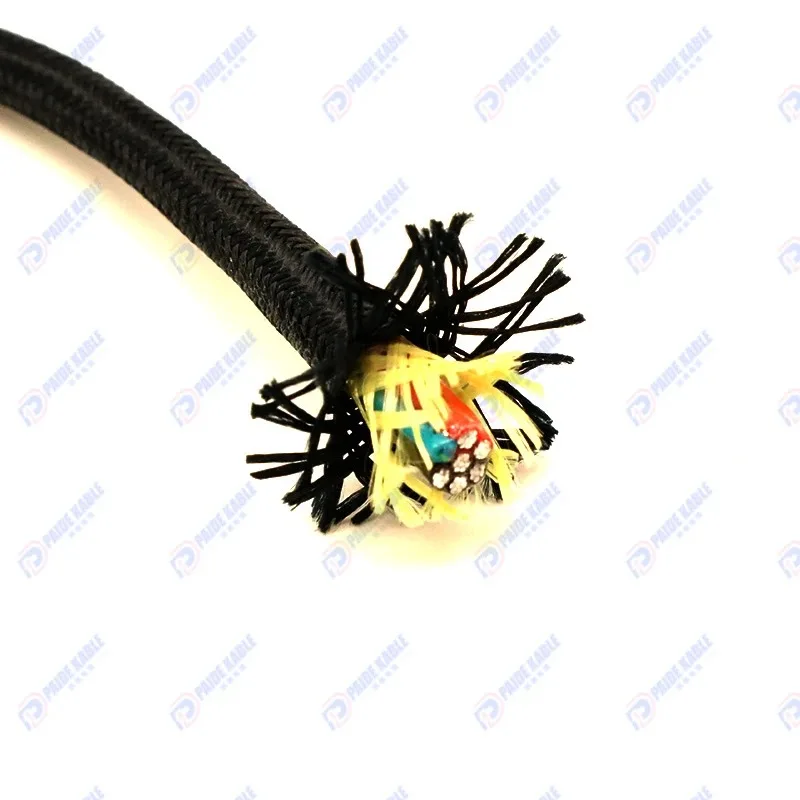

PDK41300-6×18AWG+4SMF Tethered Drone Cable 5.2 mm

Name: PDK41300-6×18AWG+4SMF Tethered Drone Cable 5.2 mm
Brand: PAIDE

Tethered Drone Cables · Tethered Systems

Lightweight hybrid tether with 6×18AWG (0.82 mm²) silver-plated copper conductors and four G657A2 fibers, 5.2 mm diameter, under 3 kg/100 m.

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Fly higher, see further and do more with a durable, lightweight hybrid cable solution.

Model: PDK41300-6×18AWG+4SMF

Cable construction:

- 6 cores 18AWG (0.82 mm²)

- 4 single-mode fibers (fiber type: G657A2)

Insulation material: FEP/PTFE

Conductor: silver-plated copper / lightweight copper alloy

Sheath: high-strength aerospace fiber

Jacket color: black

Temperature range: -55~+150℃

Outer diameter: 5.2 mm

Weight: less than 3.0 kg/100 m

Properties: good environmental adaptability; salt spray resistant, heat and humidity resistant, temperature resistant, low pressure resistant, UV resistant and rain resistant.

If you need a different design, please contact us at any time.
