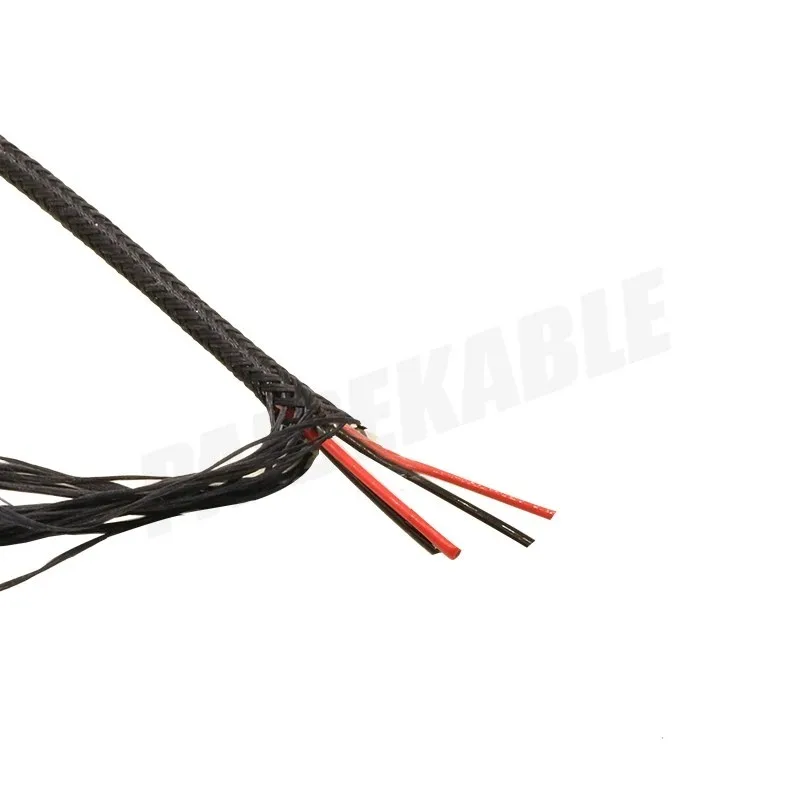

PDK41301-4×20AWG Tethered Drone Cable, 1500–2000 VDC, OD 4.6 mm

Name: PDK41301-4×20AWG Tethered Drone Cable, 1500–2000 VDC, OD 4.6 mm
Brand: PAIDE

Tethered Drone Cables · Tethered Systems

Tethered drone cable with two 20AWG pairs of silver-plated copper for 10–15 A at 1500 VDC, aramid sheath, OD 4.6 mm, 34.6 g/m, -55 to +150 °C.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

PAIDE provides durable, lightweight hybrid cable solutions for tethered drones. This lets the aircraft fly higher, see further and do more than before.

The cable contains 2 pairs of 20AWG conductors that can supply a continuous 10–15 A at 1500 VDC. The cable is designed for a high rated voltage of 2 kV.

Model: PDK41301-4×20AWG

Cable construction:

- 2 pairs 20AWG

Insulation material: high-quality composite material

Conductor: silver-plated copper

Sheath: high-strength aramid fibre

Outer sheath colour: black

Temperature range: -55 to +150 °C

Outer diameter: 4.6 ± 0.3 mm

Weight: 34.6 ± 1.0 g per metre

Rated current: 10–15 A

DC resistance: 16.2 Ω/km
