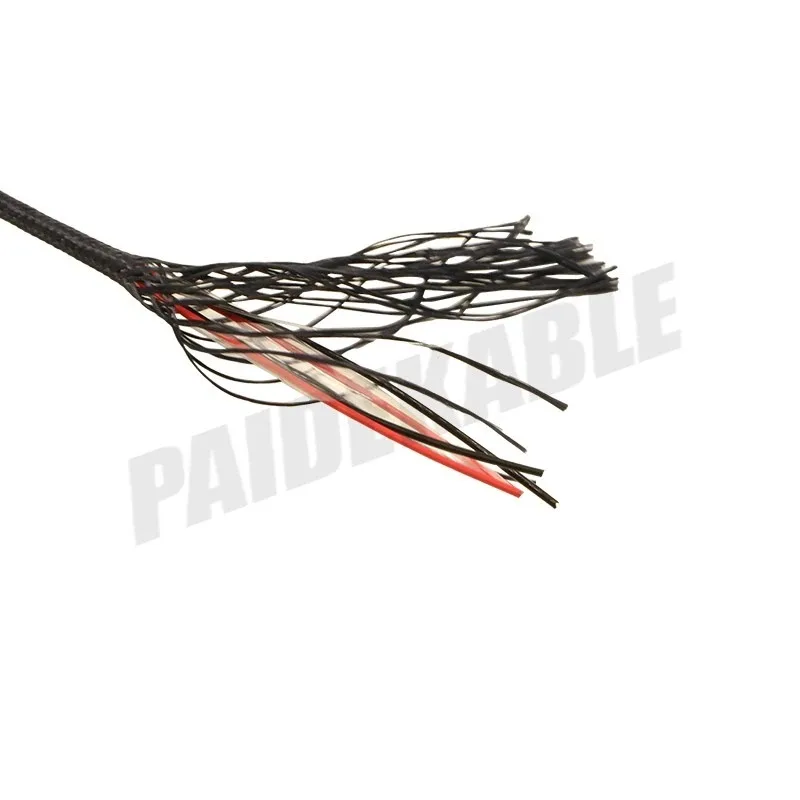

PDK41301-4×22AWG Tethered Drone Cable 1500VDC 4.2mm
Tethered Drone Cables · Tethered Systems
PDK41301-4×22AWG
Tethered drone cable of 2 pairs 22AWG silver-plated copper carrying 7-10A at 1500VDC, 4.2mm jacket, 27.3 g/m, rated -55℃~+150℃.
Product introduction
We supply durable, lightweight hybrid cable solutions for tethered drones, allowing the aircraft to fly higher, see further and do more than before.
The cable contains 2 pairs of 22AWG conductors that can supply a continuous 7-10A at 1500VDC. It is designed for high rated voltage, with a voltage rating of 2kV.
Model: PDK41301-4×22AWG
Cable construction:
- 2 pairs 22AWG
Insulation material: high-grade composite material
Conductor: silver-plated copper
Jacket: high-strength aviation fibre
Outer jacket color: black
Temperature range: -55~+150℃
Outer diameter: 4.2±0.3mm
Weight: 27.3±1.0g per metre
Rated current: 7-10A
DC resistance: 27Ω/km
Rated voltage: 1500-2000VDC
Properties: good environmental adaptability, resistance to salt spray, heat and humidity, temperature, low pressure, UV and rain.
If this does not meet your requirements, contact us and we will provide a new design free of charge.
We will supply you with a cost-effective tethered drone cable.
