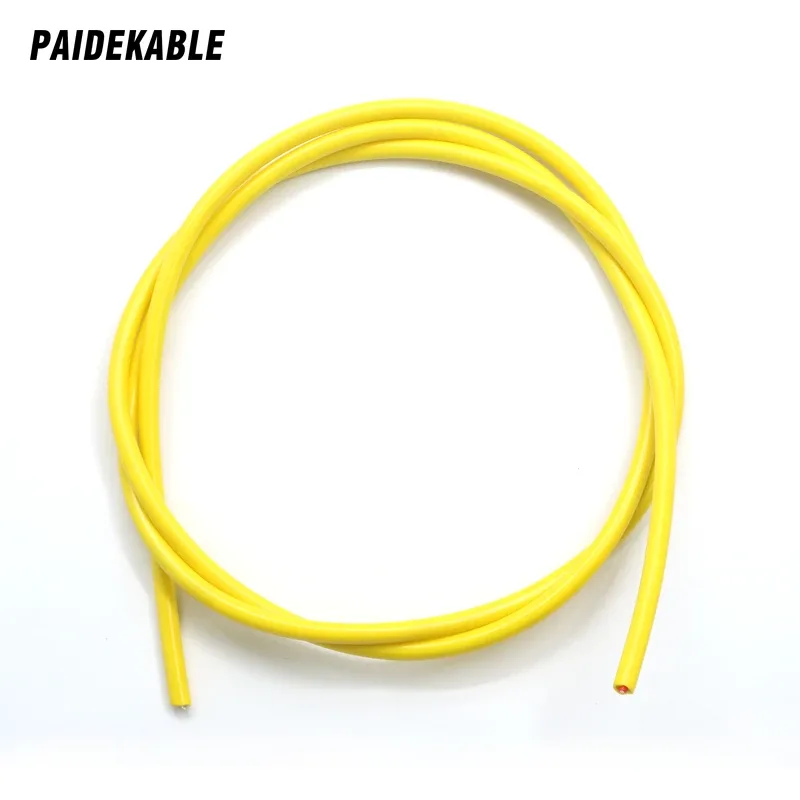

PDK41302-2*19AWG+1SMF Tethered Drone Cable 4.2mm 500N

Name: PDK41302-2*19AWG+1SMF Tethered Drone Cable 4.2mm 500N
Brand: PAIDE
SKU: PDK41302-2*19AWG+1SMF

Tethered Drone Cables · Tethered Systems

PDK41302-2*19AWG+1SMF

Tethered drone cable with 2×19AWG silver-plated copper power cores plus 1×single-mode G657A2 fibre, 4.2mm PUR jacket, 500N tensile, 23.9 g/m.

Model

PDK41302-2*19AWG+1SMF

Construction

2*19AWG+1SMF Tethered Drone Cable 4.2mm 500N

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

This is a high-performance airborne tether cable designed for tethered drones and unmanned aircraft systems (UAS) in surveillance, inspection, emergency communication and military reconnaissance. It combines reliable power transfer with real-time data and signal transmission, with high tensile strength, lightweight flexibility and good abrasion resistance, UV resistance and weather resistance.

Model

PDK41302-2*19AWG+1SMF

Specification

2*19AWG+1SMF

Conductor

Silver-plated copper

Insulation

Fluorinated ethylene propylene (FEP)

Jacket

Polyether polyurethane (PUR)

Fibre type

Single-mode G657A2

Strength member

LCP filler

Jacket outer diameter (mm)

4.2±0.3mm

Jacket color

Yellow

Temperature range

-40~105℃

Tensile strength

500N

Weight per metre (air) (g/m)

approx. 23.9 g/m

The cable supplies continuous high-voltage power to the aircraft while maintaining high-bandwidth data communication, giving unlimited flight endurance without battery changes. It has passed demanding dynamic bending and pull-out tests, confirming no performance loss under repeated spooling and unspooling and harsh outdoor conditions; the design emphasis is mechanical durability rather than water resistance.

Well suited to:

Tethered multi-rotor and fixed-wing drones for continuous surveillance, inspection and mapping

Police and border patrol drones requiring 24/7 aerial monitoring

Emergency communication relay drones (disaster response, search and rescue)

Military reconnaissance and electronic warfare drone platforms

Temporary mobile communication masts (drone as a tethered mast)

Power line and pipeline inspection drones requiring long flight times

Agricultural mapping and environmental monitoring drones

It meets the simultaneous need for continuous power and high-speed data transfer to airborne equipment in extreme weather (strong wind, rain, heat, sand and UV). The lightweight, compact design minimises payload drag while retaining good bending performance for repeated tether deployment and recovery.

The cable is suited to continuous aerial surveillance, industrial drone inspection, emergency communications, border patrol and military unmanned systems.
