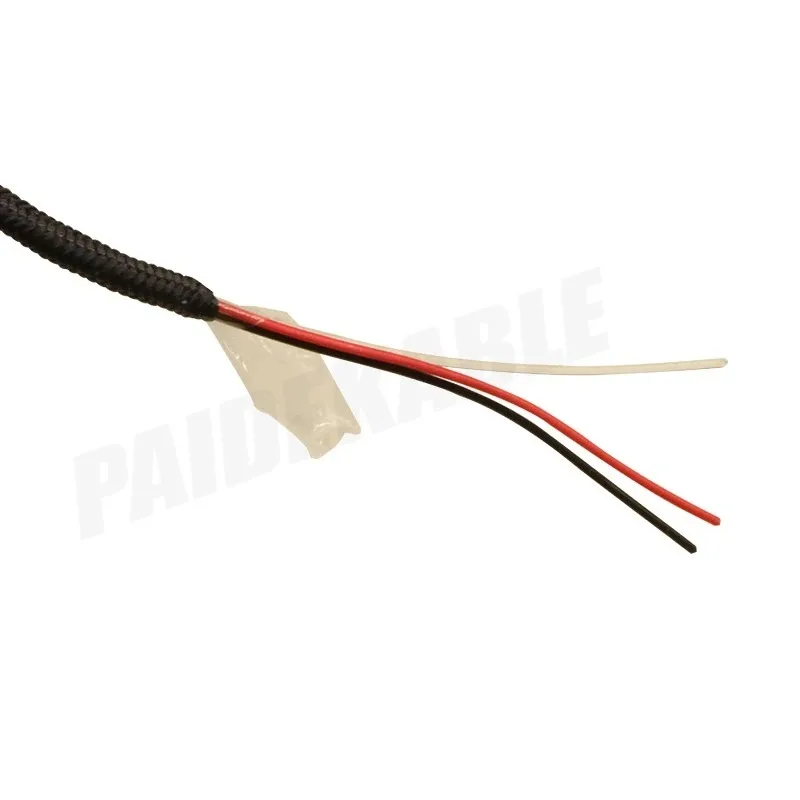

PDK41302-2*0.2+1SMF Tethered Drone Cable with Single-Mode Fibre

Name: PDK41302-2*0.2+1SMF Tethered Drone Cable with Single-Mode Fibre
Brand: PAIDE
SKU: PDK41302-2*0.2+1SMF

Tethered Drone Cables · Tethered Systems

PDK41302-2*0.2+1SMF

Tethered drone cable with two 0.2mm² silver-plated copper conductors for 750 VDC power and one single-mode fibre for video and signal, 8.7 g/m.

Model

PDK41302-2*0.2+1SMF

Specification

2 × 0.2mm² + 1 single-mode fibre

Conductor

Silver-plated copper

Insulation

Composite material

Jacket

High-strength aramid fibre

Outer diameter

2.5 ± 0.2 mm

Weight

8.7 ± 0.3 g/m

Current rating

1–3 A

DC resistance

89 Ω/km

Voltage

750–1000 VDC

Temperature range

-55 °C to +150 °C

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

PAIDE supplies durable, lightweight hybrid cable solutions for tethered drones, allowing the aircraft to fly higher, see further and do more than before.

The cable contains 2 conductors that carry a continuous current of 1–3 A at 750 VDC, plus one single-mode fibre for video and signal transmission.

Model: PDK41302-2*0.2+1SMF

Cable construction:

- 2 cores, 0.2mm²

- 1 single-mode fibre

Insulation material: composite material

Conductor: silver-plated copper

Jacket: high-strength aramid fibre

Outer jacket colour: black

Temperature range: -55 to +150 °C

Outer diameter: 2.5 ± 0.2 mm

Weight: 8.7 ± 0.3 g/m
