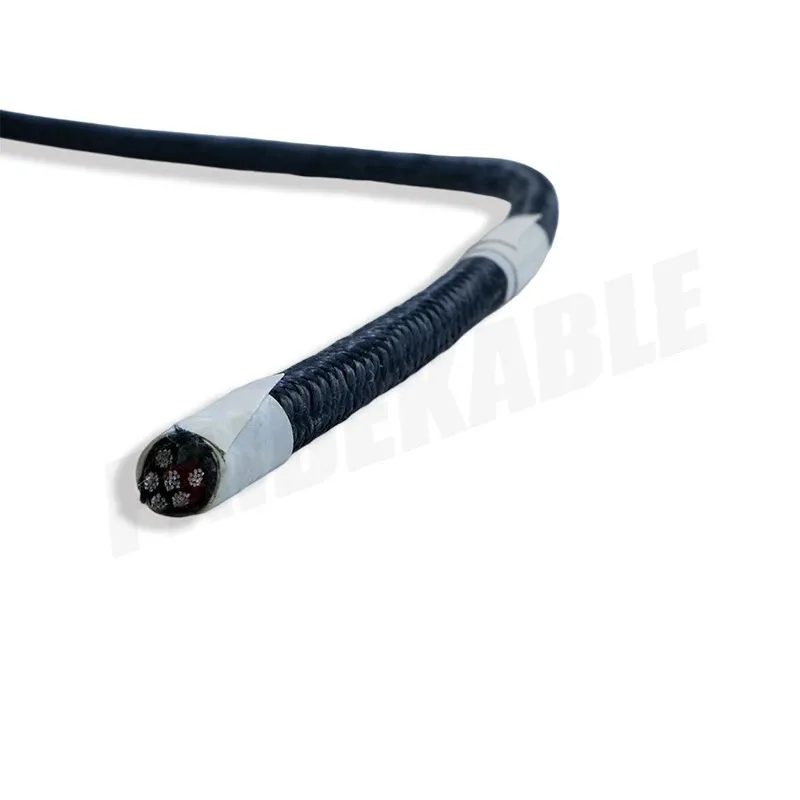

PDK41902-6×0.8+4SMF Tethered Drone Cable 1000 VDC

Name: PDK41902-6×0.8+4SMF Tethered Drone Cable 1000 VDC
Brand: PAIDE

Tethered Drone Cables · Tethered Systems

Lightweight tether with 6×0.8 mm² power cores and four G657A2 single-mode fibers in an aramid braided jacket, 5.2 mm, 36 g/m, 1000 VDC.

Request pricing → Email engineering

Custom engineering is available: conductor cross-section and core count, shielding type, sheath color, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product overview

Unlimited flight time, with reliability as the foundation

High-performance tethered drone cable

Our advanced tethered drone cable is designed for mission-critical operations and provides continuous airborne endurance. It delivers continuous power and high-speed data transmission, so your drone can operate for hours or days as required, without being limited by battery life.

Key features and benefits:

Robust multi-conductor design:

The configuration has 2 power conductors, each made up of 3 parallel copper alloy strands, giving high current capacity, low voltage drop and minimum resistance.

4 integrated single-mode fibers (SMF) ensure high-bandwidth, long-distance data transmission for clear video, telemetry and command signals, fully immune to EMI/RFI interference.

Aramid fiber braided reinforcement:

The backbone of the cable is a lightweight but very strong braided aramid fiber jacket. This material provides:

Very high tensile strength: withstands high tension and dynamic stress during take-off, landing and adverse wind conditions.

Excellent abrasion resistance: protects the inner components from damage caused by rough terrain, repeated deployment and environmental wear.

Lightweight construction: reduces overall system weight and drag as far as possible, supporting longer endurance and steadier hovering.

Inherent fire resistance: the aramid fiber jacket is self-extinguishing and flame retardant, improving operational safety in sensitive and high-risk environments.

Technical specifications:

Conductor: 6×0.8 mm², three strands per conductor

Fiber: 4 single-mode fibers (G657A2)

Diameter: 5.2 mm

Weight: 36 g per meter

Rated voltage: 1000VDC

Applications:

The cable is well suited to a wide range of professional applications, including:

Continuous monitoring and security

Public safety and emergency response

Broadcast-grade live transmission

Industrial inspection and monitoring

Your mission, our cable: designed for durability.

Choose a tether that delivers stable power, reliable data and lasting durability. Extend the capability of your drone beyond the limits of battery capacity.
