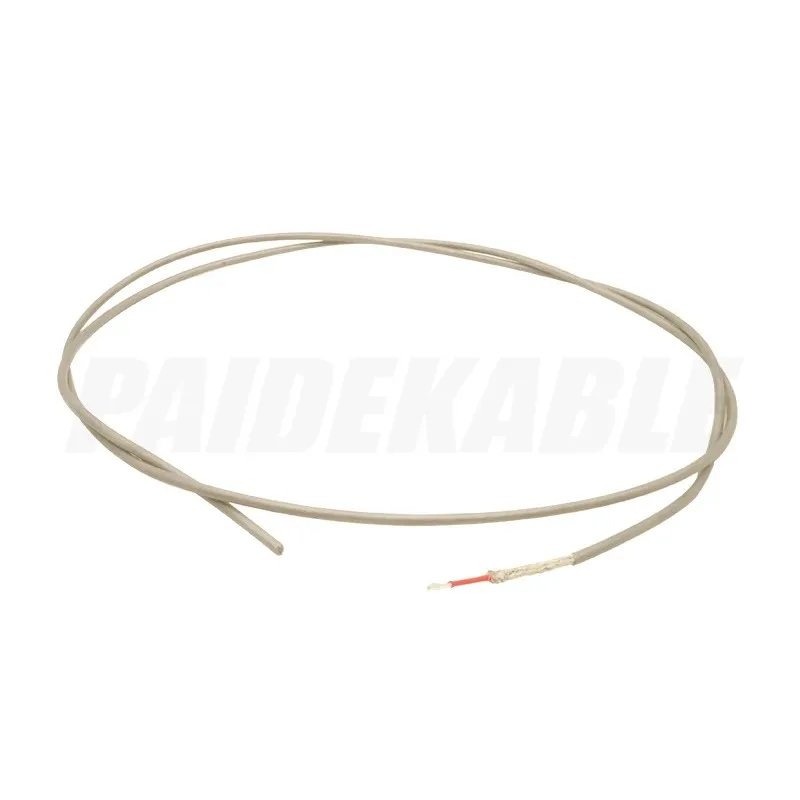

PDK41903 0.6 mm² Coaxial Tethered Drone Cable, 750-1000 VDC

Product introduction

PAIDE supplies durable, lightweight hybrid cable solutions for tethered drones. These allow the drone to fly higher, see further and do more than before.

This tethered drone cable is of coaxial design. It contains two conductors, the inner conductor acting as one and the outer shield as the other, and can supply a continuous current of 3-5 A at 750 VDC.

Model: PDK41903-0.6

Construction:

- 0.6 mm² coaxial

Insulation material: high-quality composite material

Conductor: lightweight silver-copper alloy

Shield: lightweight silver-copper alloy plus aramid fibre braid

Sheath: high-quality composite material

Sheath colour: grey (other colours available on request)

Temperature range: -55 to +150 °C

Outer diameter: 2.8±0.15 mm

Weight: less than 1.0 kg/100 m

Operating current: 3-5 A

Operating voltage: 750-1000 VDC

Features: good environmental adaptability, resistance to salt spray, heat and humidity, temperature, low pressure, UV and rain.

If this does not meet your requirements, you can contact us and we will provide a new design free of charge.

We will provide you with a cost-effective tethered drone cable.
