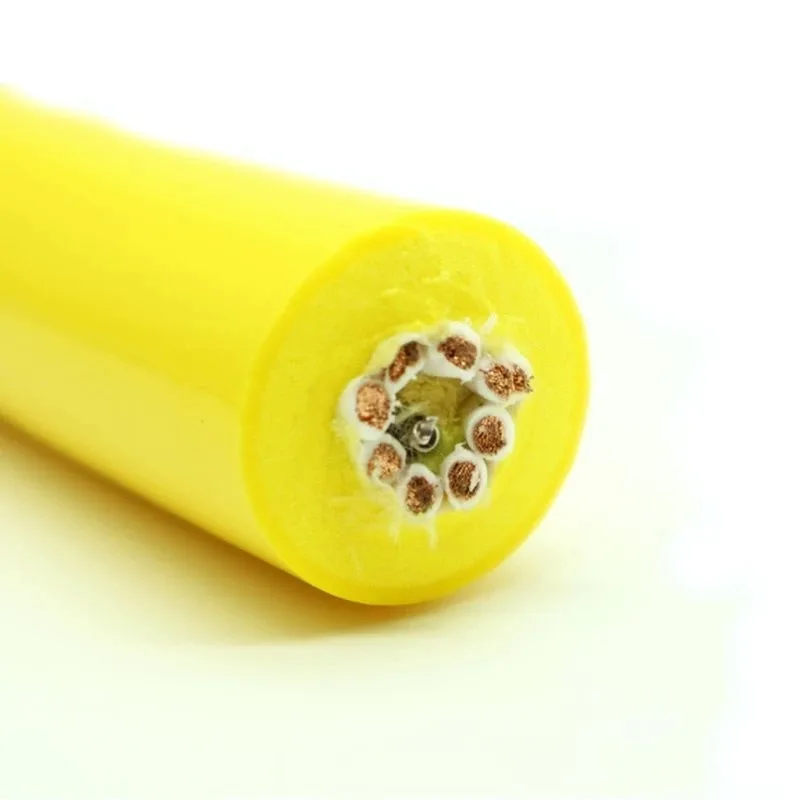

PDK81600-8×2.0+2SMF-150KG-DJ Double-Sheathed ROV Optoelectric Cable, OD 24.3 mm

Name: PDK81600-8×2.0+2SMF-150KG-DJ Double-Sheathed ROV Optoelectric Cable, OD 24.3 mm
Brand: PAIDE

Watertight Optoelectric Cables · Marine & Subsea

Buoyant ROV optoelectric cable with eight 2.0 mm² (14AWG) cores, SM fibre, steel spiral armour, Kevlar braid 200 kg, PUR foam inner sheath, OD 24.3 mm.

Request pricing → Email engineering

Built to project order: conductor cross-section and core count, shield type, sheath colour, length and print legend can all be adapted to the working conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

It uses a buoyant construction. The cable itself is light and suited to underwater equipment. It is towed down as the equipment descends, which effectively avoids the inconvenience caused by excessive sinking of conventional underwater cables.

Model: PDK81600-8×2.0+2SMF-150KG-DJ

Cable construction:

- 8 cores 2.0 mm² (14AWG)

- 4 cores SM fibre

Protection element: steel spiral armour & PVC sheath

Strength member: Kevlar braid (200 kg)

Inner sheath: PUR foam

Outer sheath: PUR

Outer sheath colour: yellow

Temperature range: -30 °C to 90 °C

Outer diameter: 24.3 mm

Depth rating: 500–1000 m

Features: oil resistant, flame retardant, hydrolysis resistant, antibacterial, UV resistant and so on.

The subsea ROV floating cable is a high-performance tether designed for remote operated vehicles and other subsea applications. It is light, strong and optimised for handling. Breaking strength is customised to the requirements of the vehicle, and water-blocking fibres are embedded to seal any leak.

If you cannot find the model you need, please contact us at any time.
