PDK81600 2×17AWG + 1×2×28AWG 150 kg Neutrally Buoyant ROV Cable, 9.0 mm

Name: PDK81600 2×17AWG + 1×2×28AWG 150 kg Neutrally Buoyant ROV Cable, 9.0 mm
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

PDK81600 neutrally buoyant ROV cable with 2×1.0 mm² (17AWG) power cores and one 28AWG pair, 150 kg Kevlar, 9.0 mm OD, rated to 500 m.

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Neutrally buoyant cables are used for on-board operations. Ocean-going vessels commonly operate in water several hundred or even several thousand metres deep and, in addition to the necessary equipment and instruments, require cables for power, video and signal transmission. These cables are usually lightweight and either neutrally, positively or negatively buoyant.

Model: PDK81600-2×17AWG+1×2×28AWG-150KG

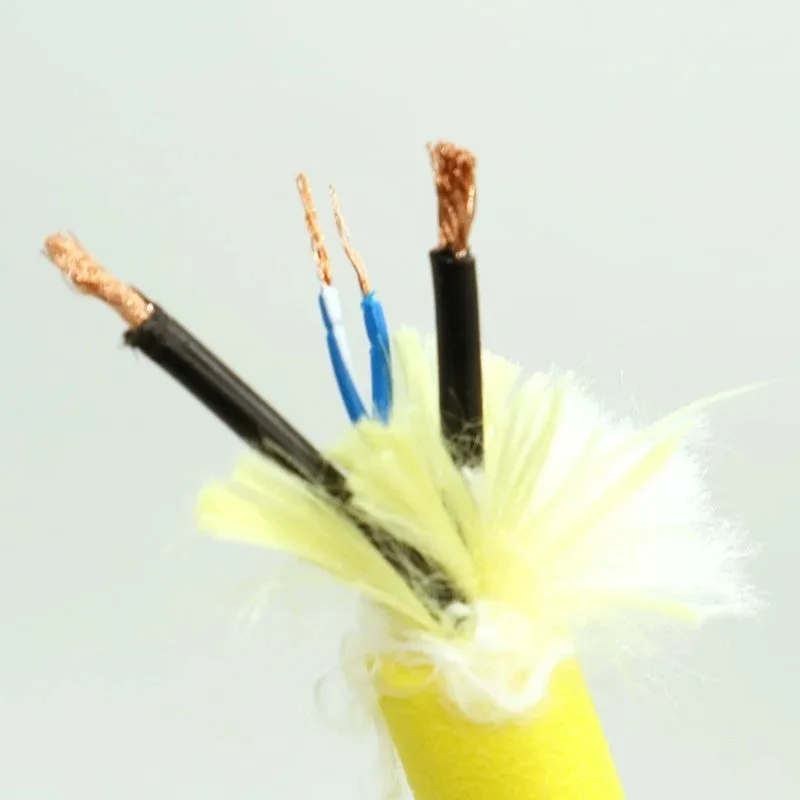

Construction:

- 2 cores 1.0 mm² (17AWG)

- 1 pair 0.08 mm² (28AWG)

Insulation material: PE

Strength member: Kevlar filler (150 kg)

Sheath: PUR foam

Outer sheath colour: yellow

Temperature range: -30 °C to 90 °C

Outer diameter: 9.0 mm

Depth rating: 500 m

Features: oil resistance, flame retardancy, hydrolysis resistance, anti-microbial and UV resistance, among others.
