PDK81600 3x2x26AWG-50KG Neutrally Buoyant ROV Tether
Zero-Buoyancy Cables · Marine & Subsea
Neutrally buoyant ROV tether with three 26AWG twisted pairs, 50 kg breaking strength, water-blocked core and 500 m depth rating.
Product introduction
The ROV tether is a high-quality tether designed for remotely operated vehicles and other subsea applications.
Model: PDK81600-3x2x26AWG-50KG-DJ
Cable construction:
- 3 twisted pairs 26AWG (0.14 mm²)
Insulation material: PE
Tensile strength: 50 kg (Kevlar filler)
Inner sheath: PUR foam
Outer sheath: PUR
Outer sheath color: yellow
Temperature range: -30 °C to 105 °C
Outer diameter: 7.8 mm
Depth rating: 500 m
Properties: oil resistant, flame retardant, hydrolysis resistant, anti-bacterial, UV resistant.

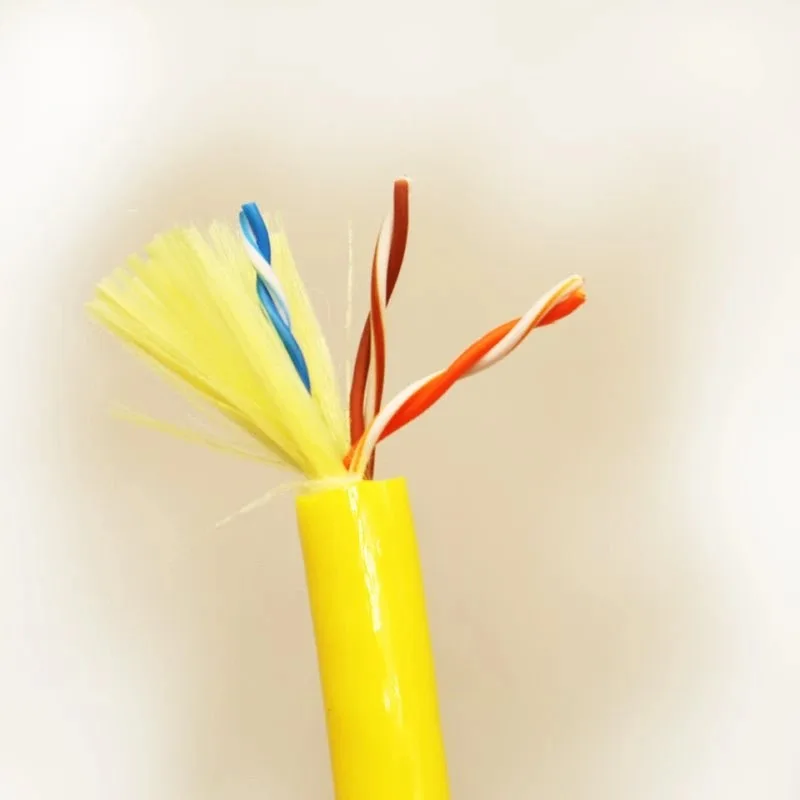

This 6-core buoyant cable is an ROV tether. It is neutrally buoyant with a breaking strength of 50 kg and incorporates water-blocking fibers to seal any leak. The cable core contains Kevlar yarns for strength and polyester yarns as space fillers. Both fiber types are impregnated with a water-blocking compound so that a nick or crack in the cable does not cause a leak.
The high-visibility yellow polyurethane foam sheath resists abrasion and provides neutral buoyancy. The cable stiffness is designed to be flexible enough to give your ROV sufficient freedom of movement, yet stiff enough not to kink easily.
If you have not found the model you need, please contact us at any time.
