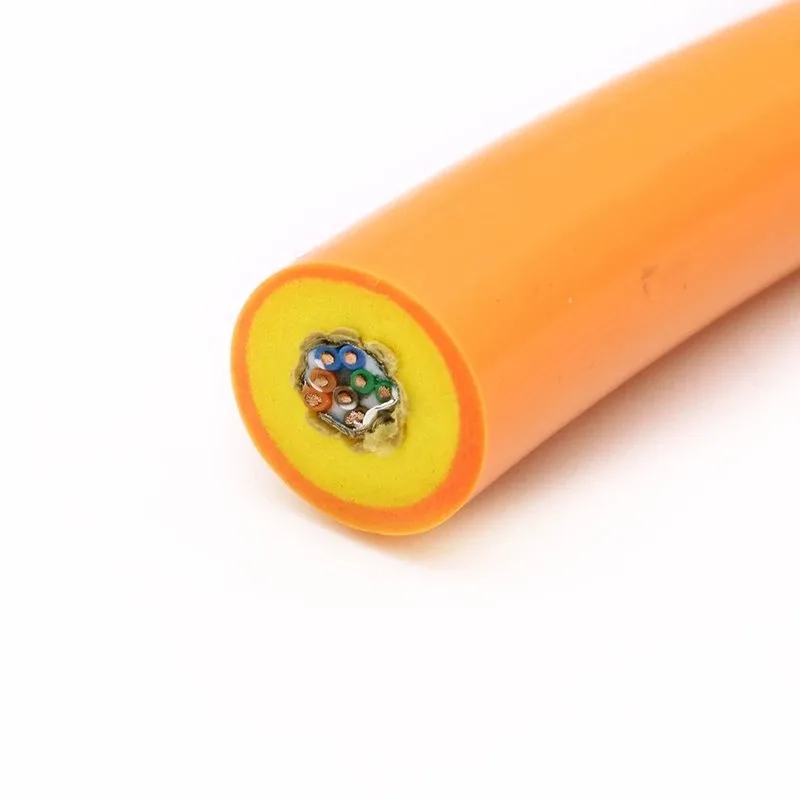

PDK81600-4×2×20AWG-200KG Neutrally Buoyant ROV Tether, 4 Pairs 20AWG, Orange

Name: PDK81600-4×2×20AWG-200KG Neutrally Buoyant ROV Tether, 4 Pairs 20AWG, Orange
Brand: PAIDE
SKU: PDK81600-4×2×20AWG-200KG

Zero-Buoyancy Cables · Marine & Subsea

PDK81600-4×2×20AWG-200KG

Neutrally buoyant ROV tether with four 20AWG pairs, 200kg Kevlar fillers and a foamed PUR inner jacket, rated for 500 to 1000 m working depth.

Model

PDK81600-4×2×20AWG-200KG

Specification

4 × 2 × 20AWG (0.5mm²)

Insulation

Strength member

Kevlar fillers, 200 kg

Inner jacket

Foamed PUR

Outer jacket

PUR, orange

Outer diameter

18.5 ± 0.5 mm

Temperature range

-30 °C to +105 °C

Depth rating

500–1000 m

Tensile strength

200 kg

Request pricing → Email engineering

Custom-built to project requirements: conductor cross-section and core count, shielding type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Neutrally buoyant cables are used for on-board operations. Ocean-going vessels work in water hundreds or even thousands of metres deep and, besides the necessary hardware such as equipment and instruments, need cables for power, video and signal transmission. These cables are usually lightweight and either neutrally, positively or negatively buoyant.

Model: PDK81600-4x2x20AWG-200KG

Cable construction:

- 4 pairs, 20AWG (0.5mm²)

Insulation material: PE

Strength member: Kevlar fillers (200 kg)

Inner jacket: foamed PUR

Outer jacket: PUR

Outer jacket colour: orange

Temperature range: -30 °C to +105 °C

Outer diameter: 18.5 ± 0.5 mm

Depth rating: 500–1000 m

Properties: oil-resistant, flame-retardant, hydrolysis-resistant, anti-microbial, UV-resistant.
