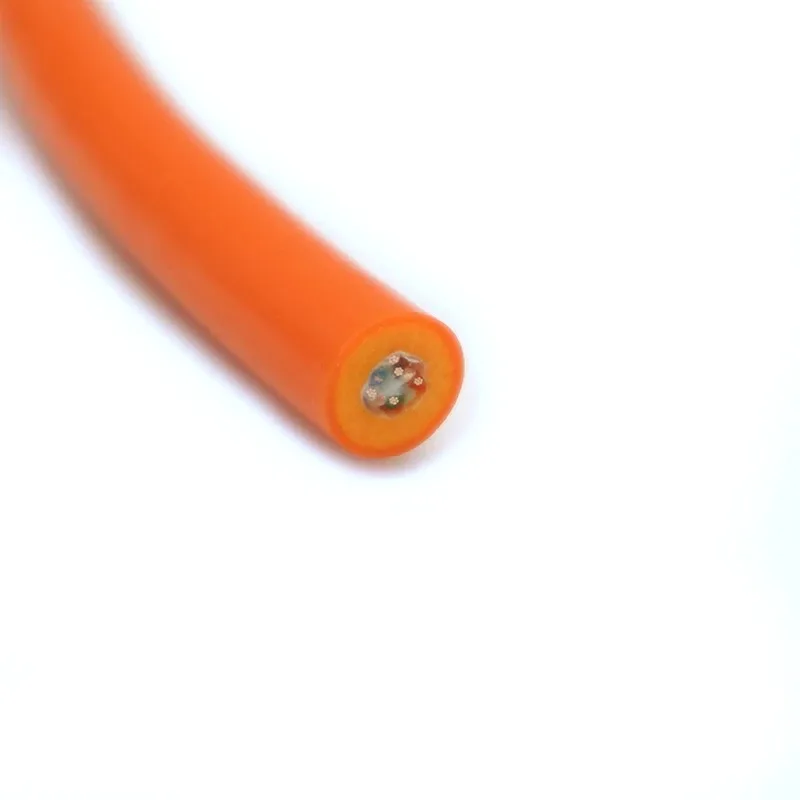

PDK81600 4×2×24AWG 120 kg Zero-Buoyancy ROV Tether, 9.2 mm

Name: PDK81600 4×2×24AWG 120 kg Zero-Buoyancy ROV Tether, 9.2 mm
Brand: PAIDE

Zero-Buoyancy Cables · Marine & Subsea

PDK81600 zero-buoyancy ROV tether with four 24AWG pairs, a 120 kg Kevlar strength member, PUR foam inner sheath and 9.2 mm OD, rated to 500-1000 m.

Construction

4×2×24AWG 120 kg Zero

Tensile strength

120 kg

Request pricing → Email engineering

Project-specific customisation is available: conductor cross-section and core count, shield type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Neutrally buoyant cables are used for on-board operations. Ocean-going vessels commonly operate in water several hundred or even several thousand metres deep and, in addition to the necessary equipment and instruments, require cables for power, video and signal transmission. These cables are usually lightweight and either neutrally, positively or negatively buoyant.

Model: PDK81600-4×2×24AWG-120KG

Construction:

- 4 pairs 24AWG (0.2 mm²)

Insulation material: PE

Strength member: Kevlar filler (120 kg)

Inner sheath: PUR foam

Outer sheath: PUR

Outer sheath colour: orange

Temperature range: -30 °C to 105 °C

Outer diameter: 9.2 mm

Depth rating: 500-1000 m

Features: oil resistance, flame retardancy, hydrolysis resistance, anti-microbial and UV resistance, among others.
