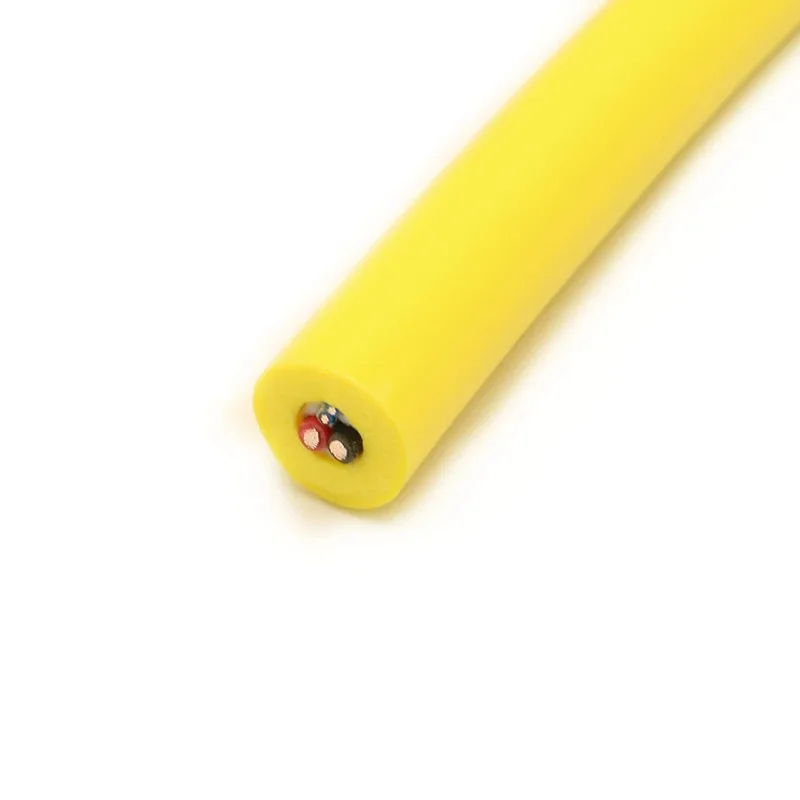

PDK81600-2*0.75+1*2*0.25 Floating Cable 100kg
Zero-Buoyancy Cables · Marine & Subsea
PDK81600-2x0.75+AS1x2x0.25-100KG
Floating ROV cable with 2×0.75mm² power cores and 1 pair of 0.25mm² signal, PUR foam inner jacket, 100kg Kevlar, 10.8mm OD, rated to 1000m.
Product introduction
Application: ROV and AUV systems.
Model: PDK81600-2x0.75+AS1x2x0.25-100KG
Cable construction:
- 2 cores 0.75mm²
(19AWG)
- 1 pair 0.25mm²
(24AWG)
Insulation: polyethylene
Inner jacket: PUR foam
Outer jacket: PUR
Outer jacket color: orange
Strength member: Kevlar filler (100kg)
Outer diameter: 10.8mm
Temperature range: -30℃~105℃
Depth rating: 500-1000m
Properties: oil resistance, flame retardancy, hydrolysis resistance, resistance to bacteria and UV.
Underwater ROV cables are a typical product line for us. We can customise different sizes and constructions to each customer's requirements.
