PDK81600-2×20AWG + Gas Tube Neutrally Buoyant Cable 150kg

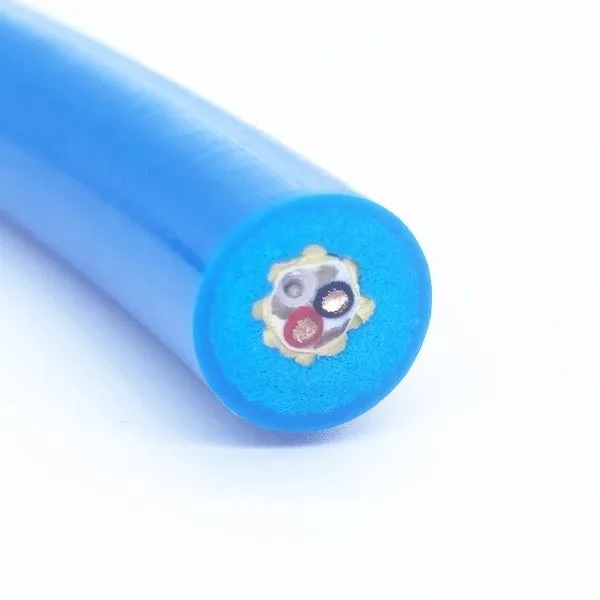

Name: PDK81600-2×20AWG + Gas Tube Neutrally Buoyant Cable 150kg
Brand: PAIDE
SKU: PDK81600-2-20(GT)

Zero-Buoyancy Cables · Marine & Subsea

PDK81600-2-20(GT)

Neutrally buoyant 2-core 0.5mm² cable with a 2.0mm gas tube, 150kg Kevlar braid, PUR foam jacket, 11.9mm OD, rated 500m, blue jacket.

Model

PDK81600-2-20(GT)

Construction

2×20AWG + Gas Tube Neutrally Buoyant Cable 150kg

Tensile strength

150 kg

Request pricing → Email engineering

Customised to project: conductor size and core count, shield type, jacket colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.

Product introduction

Neutrally buoyant cables are used in shipboard operations. Ocean-going vessels operate in water hundreds or even thousands of metres deep and, besides the necessary equipment and instruments, need power, video and signal transmission cables. These cables are usually lightweight and neutrally, positively or negatively buoyant.

Model: PDK81600-2-20(GT)

Cable construction:

- 2 cores 0.5mm² (20AWG)

- Gas tube (2.0mm)

Insulation material: PE

Strength member: Kevlar braid (150kg)

Inner jacket: PUR foam

Outer jacket: PUR

Outer jacket color: blue

Temperature range: -30℃~90℃

Outer diameter: 11.9mm

Depth rating: 500m
