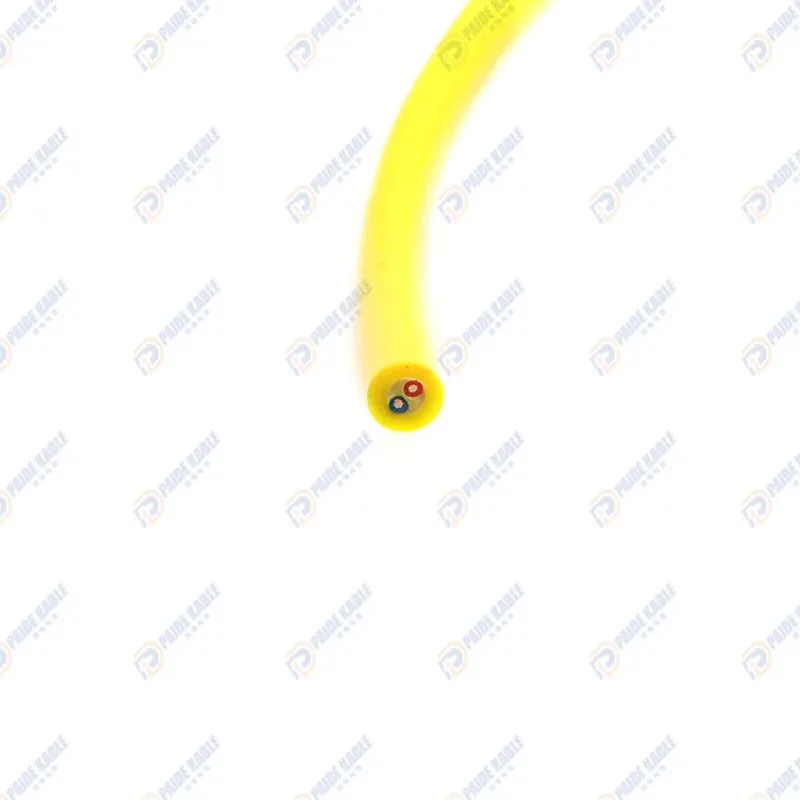

PDK81602-2×0.3 Double-Sheath ROV Cable 200 kg
Zero-Buoyancy Cables · Marine & Subsea
Double-sheath ROV and AUV cable, 2 × 0.3 mm² cores, 200 kg aramid strength member, foamed PUR inner sheath, 6.0 mm outer diameter, -30 °C to +80 °C.
Customisation available per project: conductor cross-section and core count, shielding type, sheath colour, length and print marking can all be adapted to the operating conditions; technical parameters are subject to the specification document confirmed by both parties.
Product overview
Applications: ROV and AUV systems.
Model: PDK81602-2x0.3-200KG
Cable construction:
- 2 × 0.3 mm²
Strength member: aramid fibre fillers (200 kg)
Inner sheath: foamed PUR
Outer sheath: PUR
Outer sheath colour: yellow
Outer diameter: 6.0 mm
Temperature range: -30 °C to +80 °C
Features: oil resistance, flame retardance, hydrolysis resistance, resistance to microbial attack, UV resistance, etc.
Underwater ROV cables are one of our standard product lines. We can customise different sizes and types to each customer's requirements.
